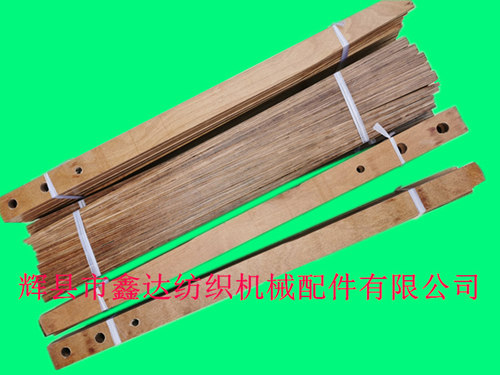

Xinda Textile Accessories Co., Ltd. has a long-term professional service of processing accessories for 34" Picking Stick Shuttle Loom Wood Parts, 34 inch beating bar, also known as beating bar, beating board and throwing bar, is a part of the loom. The beating board of 34 inch beating bar loom is mainly used for G263Z type automatic fiber changing loom. The beating bar length is 86.4cm. There are three holes in the fixed position of the foot cap of the throwing bar, two M20 holes and one M13 hole, 10 pieces / bundle, 50 pieces / bag, and the weight of a single piece is 0.68kg. The 34 inch long shuttle board is processed by laminating process. The board body is inclined, with a width of 50mm, a root thickness of 20mm and a top thickness of 9mm.
The center distance of the left hole in the above figure is 38mm from the left end, and the center distance of the two adjacent holes in the three holes is 76mm. The overall pressing is smooth and beautiful.Textile Wood Parts,Picking Stick, Shuttle Loom Parts,Textile Accessories.
Textile wood, with the shuttle loom captain beating the bar, about the role of the 34 inch shuttle loom beating board equipment: it is mainly used to hit the S6 or S5 leather knot, so that the shuttle can momentarily bear the force and fly. When the shuttle returns to the shuttle box, the process is the opposite, used to quickly reduce the speed of the shuttle, so that it stops. This is the existence of the buffer mechanism and the shuttle throwing parts of the loom.
Our company provides 34 inch bar (Picking Stick) loom shuttle board equipment, three hole bar processing, 34 inch shuttle bar wholesale, other sizes of textile shuttle board customized, starting order quantity: more than 500, (900 pieces / wooden case, wooden case 380 yuan, export-oriented).
We have been focusing on textile accessories for 20 years. We have mature production technology and purchasing channels. Please contact our company for more information about textile equipment - shuttle beating board,Textile Picking Stick, loom beating bar and textile throwing bar! We sincerely welcome Chinese and foreign customers to discuss cooperation matters.
