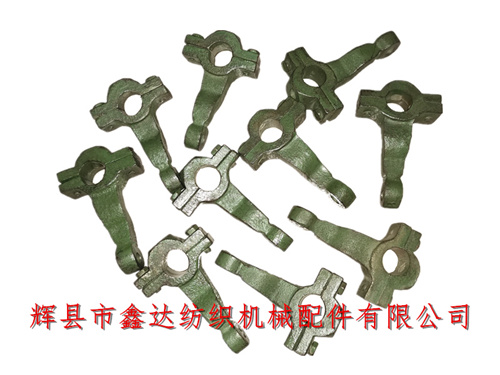

Huixian Xinda Textile machinery accessories provides 1511, 1515, GA611, 1515k and GA615 electric loom support foot weft break stop accessories, saddle rod 7200-8. The weft break stop device of loom is a complete set of structure. The overall dimension of saddle rod 7200-8: the total length is 102mm, the diameter of two semicircular shaft holes is 20mm, fixed on 1515-3423 stop shaft (1511-B56), and the diameter of shaft hole in the front of saddle rod is 8.5mm, Fix 7200-5 closing upright rod assembly.
The two hexagon bolts of the saddle bar support foot are M6 * 18mm, the support width is 63mm, the thickness is 22mm, and there are M10 support head bolt holes on the outside to fix the saddle bar support foot and adjust the height and direction of the upright bar.
The material of saddle bar supporting foot of electric loom weft break stop fitting-7200-8 of textile machine is pig iron, which is made by sand casting. The casting of textile machine and weft stop device of shuttle loom work based on mechanical principle, which has the advantages of good stability, sensitive trigger and so on.
The saddle shaped rod supporting feet are not divided into left and right hands. They are general accessories for breaking weft stop of electric loom. They are not affected and limited by the length of three sleeves. There are 10 supporting feet in each bundle, the weight of a single supporting foot is about 0.3KG, and the quantity used in each loom is 1 pcs.
Xinda Textile accessories provides more than 1000 kinds of loom spare parts of shuttle loom, shuttle textile equipment, special accessories and professional customized products and services of equipment. We have long adhered to the business philosophy of "honest management, pursuit of specificity and achievement of professionalism", and have served textile enterprises all over the world for many years. Users of textile enterprises at all levels are welcome to contact our company to consult the details of loom foot support, weft break stop, saddle rod and loom accessories and equipment!
