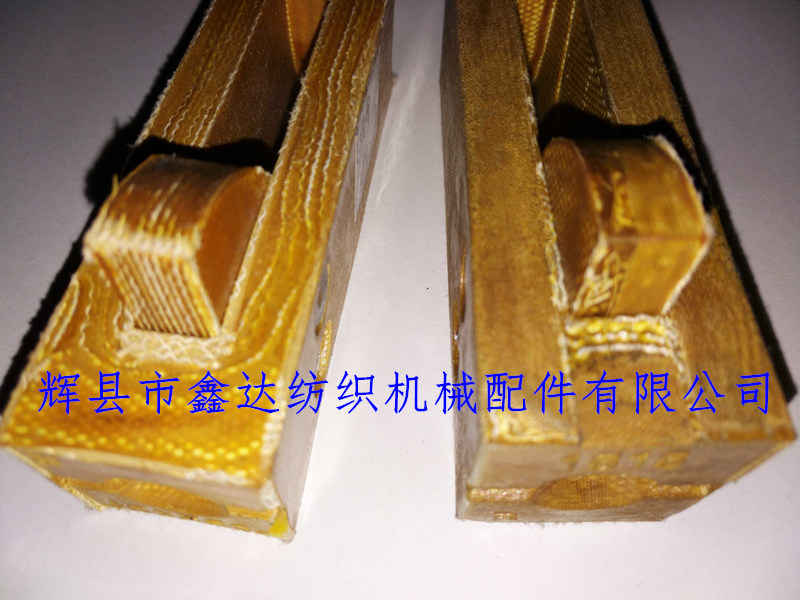

The picker height of 1515 knot fittings loom is 34 mm. The knot fittings of textile leather and tape fittings, models R00-2 and R00-3 are 102 mm in length and 31 mm in width. The angle between the bottom and one side is 86.5 degrees. The knot fittings of 1515 are composed of R33, R54 or R34 and R54. No cracks are allowed during the use of the knot, and the depth of the shuttle eye is less than 16 mm. The material of loom shuttle joint is rubber+canvas+metal rivet.

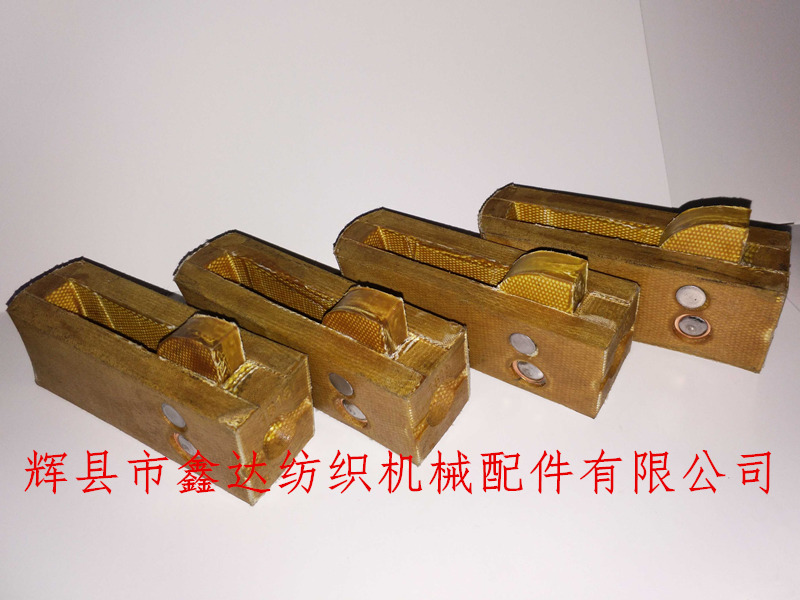

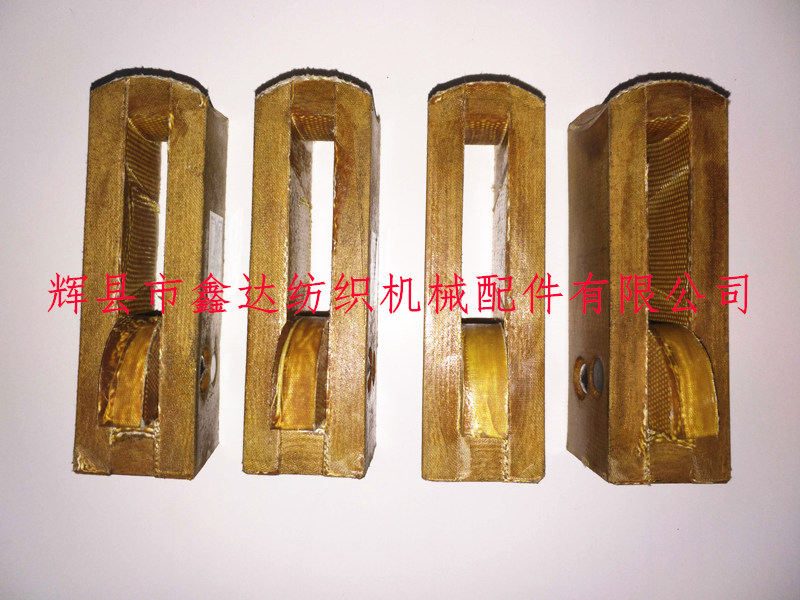

The leather knot of 1515 loom is mainly used for wide looms (56 inches, 75 inches, 63 inches, etc.). The leather knot of 1515 loom is increased by 2 mm on the basis of 1511 model, and the position of shuttle eye is moved up by 1 mm. Packaging: Carton, 100/case, leather knot R divided into left hand and right hand (determined by the direction of 86.5 degrees between the bottom and side of the shuttle knot).
Skinning function of textile equipment: Horizontal throwing shuttle for weft insertion device of loom impacts shuttle, which provides power for weft insertion carrier of loom. Wear resistance and impact resistance are closely related to material and manufacturing technology of products.
1515 loom picker,leather knot accessories loom shuttle knot, knot wholesale, textile knot manufacturers, shuttle knot processing, knot loom supplier - Xinda textile machinery accessories.
