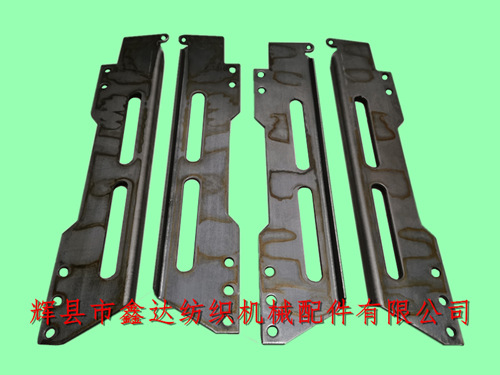

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 textile accessories. Multi Loom Shuttle Box Bottom Plate 8124, The shuttle box bottom plate 8124 (double slot) of type a multi shuttle loom. Multi Loom Parts,Shuttle Box,Bottom Plate, The total length of the multi shuttle box bottom plate 8124 (1515A type) is 37 cm, the width on both sides is 72 mm, and the middle width is 60.4 mm. The size of the two chutes is 15 mm * 100 mm. The shuttle box bottom plate of multi shuttle box accessories-8124 is made of steel 20 and the thickness is 3 mm. Generally, each loom uses 4.
The base plate 8124 of 1515A multi shuttle box is an important component of the shuttle box of shuttle wide loom. The processing technology adopts integrated stamping + bending, and the bending height is 13mm. They are divided into left mobile phone and right mobile phone (as shown in the figure above, the middle two form backhands with both sides). The inner diameter of five circular holes on the same line is 8.7mm, and the inner diameter of one circular hole on the other side is 7mm.
There are more than 2000 kinds of accessories for shuttle weaving machines. They are developed according to the renewal of loom equipment. The single chute is 8125 shuttle box cover plate and the double chute is 8124 bottom plate. The weight of the bottom plate of a single 8124 multi shuttle box is 0.5kg. It is packed in cartons with 40 pieces per box. The market ownership of 1515 old textile accessories is becoming less and less. Affected by this, the inventory of domestic spare parts is decreasing year by year. Our company generally delivers the goods in the form of orders within the agreed time.
Xinda Textile accessories provides all kinds of shuttle loom accessories, specializing in the sales of shuttle textile parts for 22 years, and has accumulated rich technical experience. We have long provided some accessories of plain weave, multi arm and multi shuttle types of 44, 75 inch and 56 inch models. The accessories and equipment used for special fabrics can be customized according to customer requirements, such as wood shuttle, weft tube, steel wire heald, reed and other products. If textile manufacturers need to purchase 1515 shuttle box bottom plate, GA615 textile accessories, 75 inch multi shuttle loom, textile machine shuttle box parts and other products, please contact Mr. Yang of our company for details!
