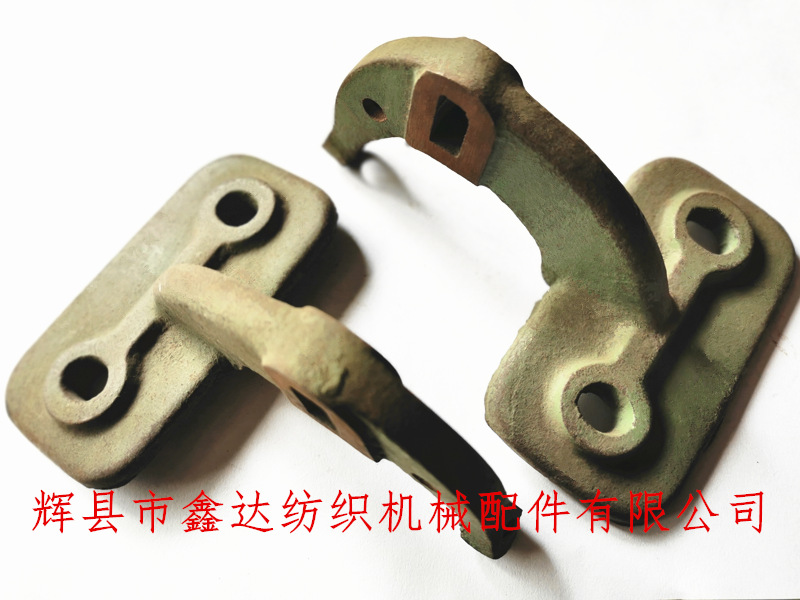

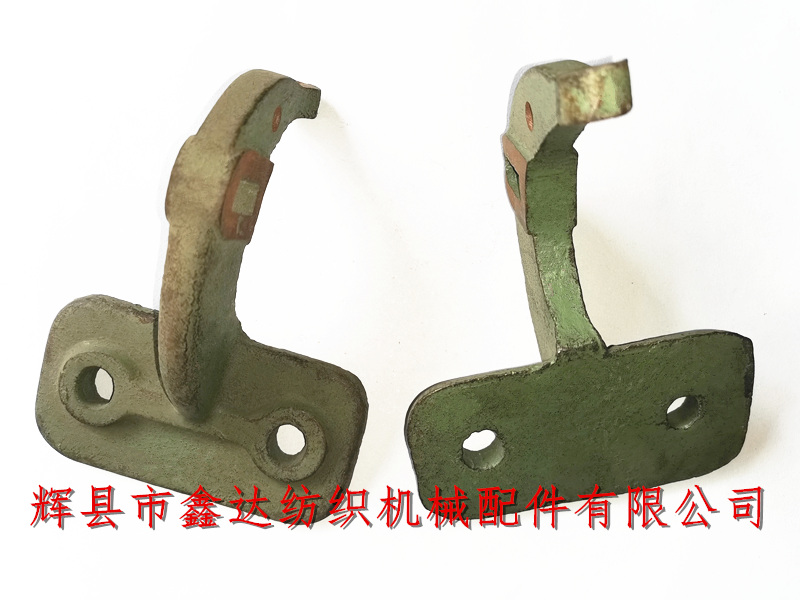

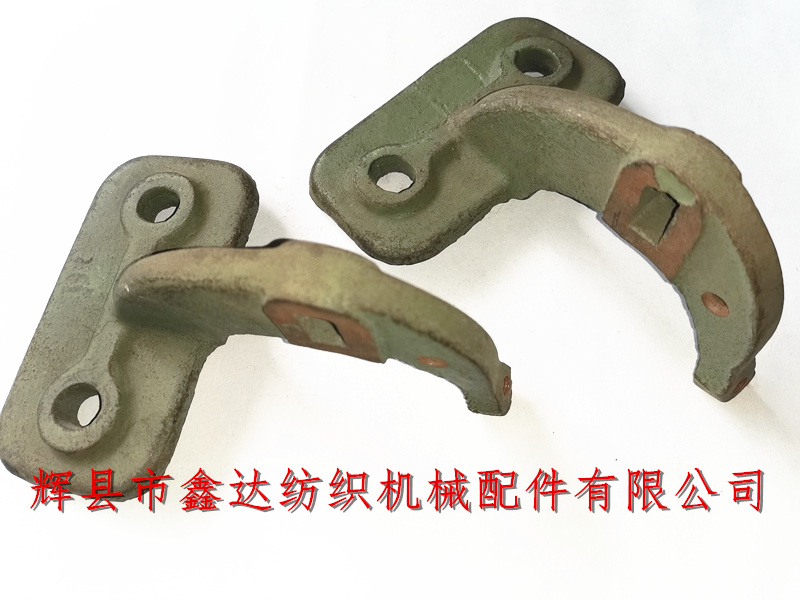

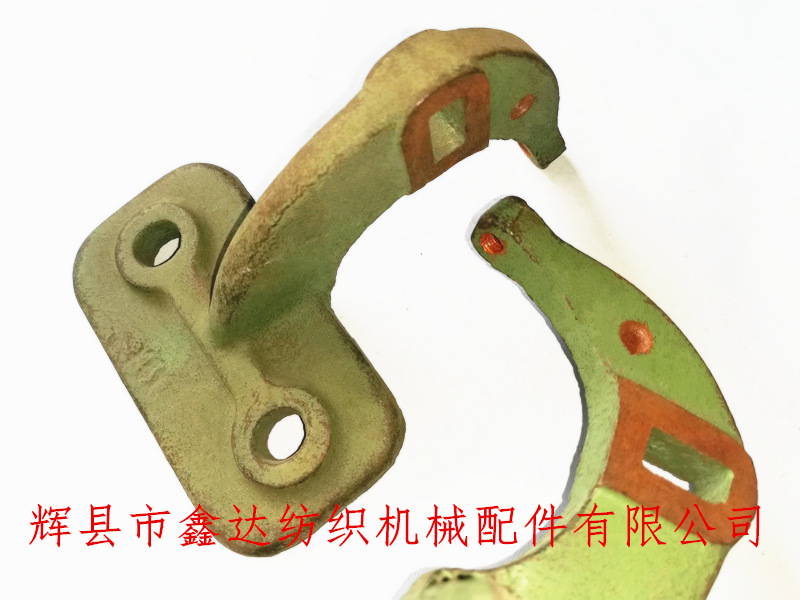

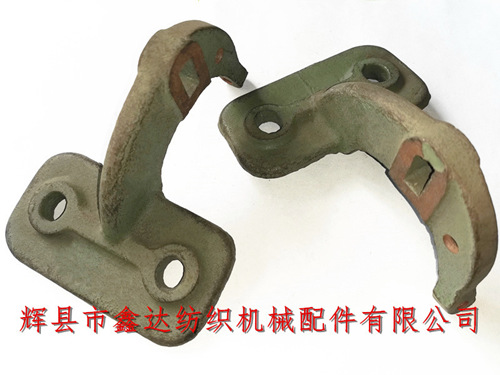

Huixian Xinda Textile machinery accessories provide K61 loom front gate rail outside bracket accessories all year round, K61 width is 127 mm, 1515 loom is connected with 3222 reed frame wood, material is gray pig iron HT15-33, each loom uses 1 piece, regardless of left hand and right hand, but has metric and British system distinction, shuttle height is in the middle of front gate rail and front convex plate, adjusting screw to front gate rail 3314 (1.6~3.9 + 0.8) ）mm.
Through the screw core 3309 of the front brake rail, the front brake rail is respectively installed on the outer supporting foot k61w of the front brake rail and the supporting foot K201 of the shuttle box cover plate, which can rotate around the screw core (3309).
The front brake rail outer supporting foot K61 is installed in front of the reed frame wood, the shuttle box cover plate supporting foot is installed on the reed base foot 3245. The two ends of the front gate rail are covered with the front brake rail torsion spring (3321, 3322), and the torsion force is always downward. After the shuttle is changed into the shuttle box, the front gate rail is quickly reset under the action of the torsion spring, and the rear side is again 90 ° with the bottom plate 3308 of the shuttle box to form the front wall of the shuttle box, providing the correct projection for the shuttle Avenue.
In order to ensure the lifting height of the front brake rail during shuttle changing, adjustable screws are installed on the outer support foot K61 of the front brake rail and the pallet foot of the shuttle box cover plate. The single weight of K61 is about 0.8 kg.
If you need to purchase front brake rail, loom bracket, loom front brake rail and other accessories, welcome to consult our company, contact Mr. Yang specifically!
