Huixian Xinda Textile machinery accessories provides all kinds of shuttle textile machine copper sleeve bearing bush accessories d1xd2 all year round. The inner diameter of copper bush is 38mm. The copper sleeve Bush accessories d1xd2 are mainly used for plug type loom equipment. They are fixed on the wall panels on both sides of the loom to ensure the horizontal rotation of the bending shaft of the loom on the wall panel. The copper sleeve of textile copper parts, loom copper fittings and shuttle loom copper sleeve are installed Oil or grease should be added during installation to prevent bearing bush from burning at high temperature.
The above figure shows the side view of d1xd2 copper sleeve of loom. The convex position at both ends is the outer edge of copper bush, which can prevent the copper sleeve from moving left and right in the wallboard of cloth loom; the convex square platform in the middle is matched with the gland to prevent the copper bush from rotating along with the crankshaft. There are many kinds of accessories for bearing bush of textile machine, and the requirements for bearing bush are also different due to different uses and installation positions.

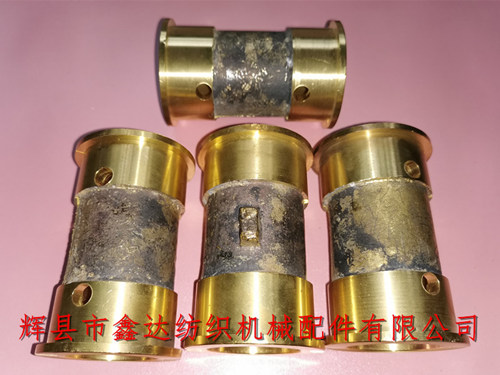

Textile copper bush d1xd2 is composed of two semicircular bearing shells. The two round holes on the side are M8 oil filling holes. Under normal circumstances, proper amount of engine oil needs to be filled, and the mechanic needs to check it every shift. The color of d1xd2 copper sleeve bearing bush accessory of textile machine is yellow, and the picture is taken in kind.
The outer edge diameter of copper sleeve is 57mm, the thickness is 3.3mm, the diameter of two processing surfaces is 50mm, the total height is 91mm, the weight of single loom copper sleeve d1xd2 is 0.55kg, and there are double oil grooves inside.
If you want to buy d1xd2, loom copper sleeve, textile machine bearing bush and other products, please contact our company - Xinda Textile machinery accessories for details, with an order of more than 100 sets.
