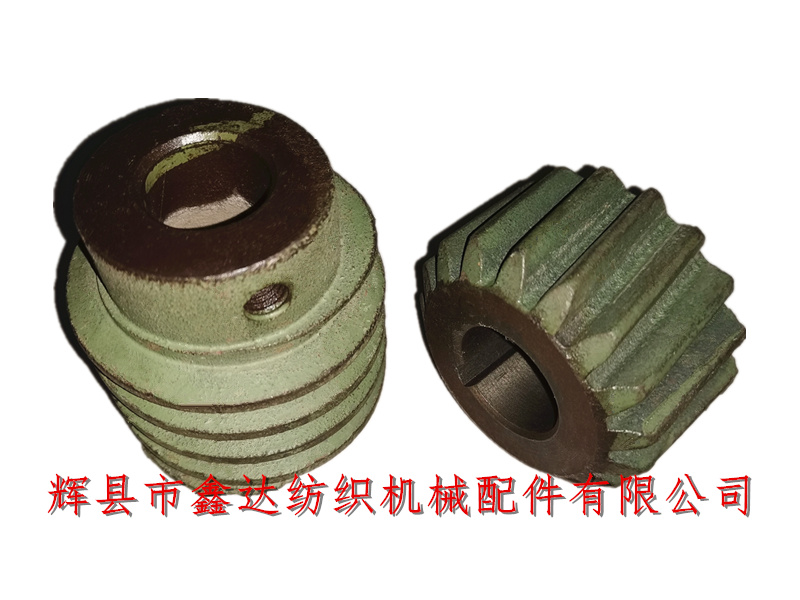

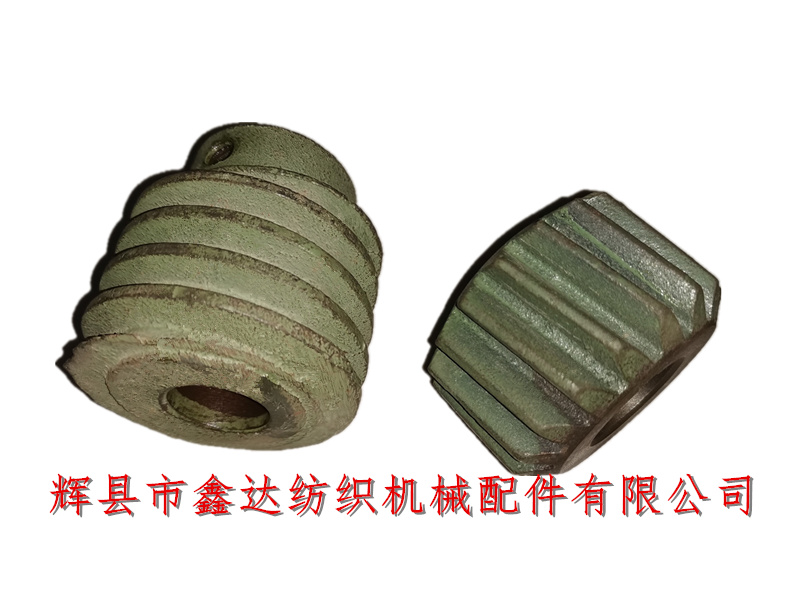

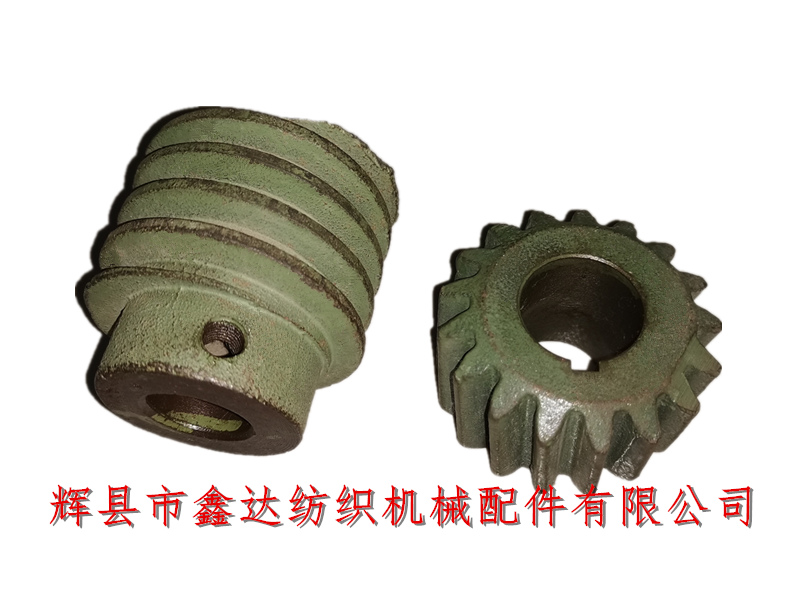

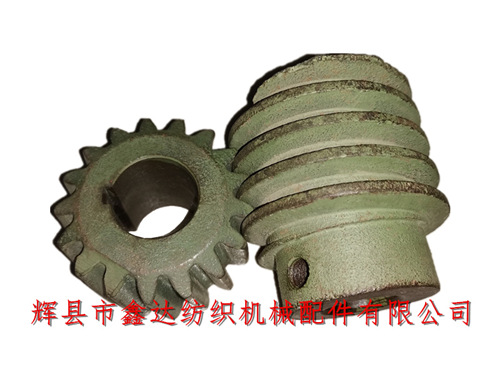

Huixian Xinda Textile machinery accessories company provides 1515 textile accessories and 3428 single head worm let off accessories. 1515-3428 Let-off Worm Wheel (Single Head), The single head let off worm gear used in 1515 internal let off loom is 3428R/L (about minutes), which is connected with 3427 let off; The let-off single head worm is B19, which is divided into left-hand and right-hand. The helix angle of the double head is 7°, which is installed on the 3426 let off side shaft. The let off accessories used by GA615 loom are G1515-4105 let-off worm, and one set is used for each loom.
The clearance between the inner diameter of B19 single head worm and let-off worm gear (3428) and shaft is less than 0.4mm, and the worm with shaft hole diameter of 24mm is judged according to this when in use: the right mobile phone uses left rotation, and the left mobile phone uses right rotation.

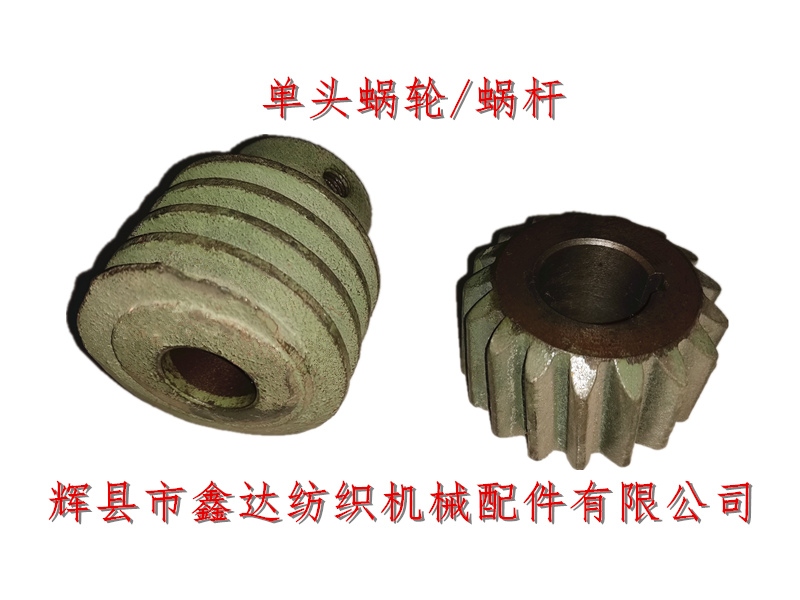

1515 inner let off fitting belongs to a kind of textile fitting. The inner hole diameter of let off worm gear 3428 is 28mm, which is the same as B5 let off worm gear used in 1511 loom. Packing method of 1515 single head worm gear and single head worm: 10 pieces per string, and the weight of a single set is about 1.5kg.
Attention shall be paid to the installation of worm gear and worm of 1515 textile accessories: the wear out of 3427 journal shall not exceed 0.25mm, the bending shall not exceed 0.1mm, the clearance with supporting foot B00-1 and middle supporting foot 3400-3 shall not exceed 0.4mm, and the keyway opening is not allowed. The horizontal distance from the tread plate shaft 3301 is 174mm and the vertical distance is 60mm (check with a fixed gauge). The horizontal tolerance is 0.08/150mm and the transverse tolerance is 0.4mm.
If textile manufacturers, textile mills and cotton weaving enterprises need to purchase shuttle textile accessories, single head worm gear, let off accessories, single head worm and other products, please contact Mr. Yang of our company for consultation and negotiation.
