Xinda Textile Machinery Accessories Co., Ltd. provides 1511 type inner let off fitting - B00-2 middle supporting foot of let off shaft. B00-2 Warp Feeding Shaft Supporting Foot, The textile supporting foot is composed of B16H and A28 bushing, which is used to fix the let off shaft of let off in loom. It is an important inner let off fitting of loom. The outer dimension of the supporting foot in the let off shaft of loom: the total length is 25.5cm, the width of the base of the loom supporting foot fixed on P5 rear beam is 12.1cm, and the length of the upper shaft hole is 68mm, The inner hole of the inlaid shaft sleeve is 28mm.
Description on the material of the supporting foot in the let off shaft of B00-2 textile machine accessories: the material of b16h is pig iron HT15-33, and the material of bushing A28 is iron-based (powder metallurgy). One is used for each loom. Application requirements: the clearance between B13 and let off shaft is 0.4mm for major repair and 0.6mm for minor repair.
Part B let off mechanism is an important part of the inner let off of the loom. It is suitable for the let off device of 1511 textile machine. Shuttle Loom Parts, The inner hole diameter of the supporting foot B16H in the let off shaft of the loom is 34mm, the height is 12.1cm, the center distance from the lower edge of the base to the shaft hole is 229mm, and the weight of the supporting foot B00-2 in a single let off shaft is 2kg.

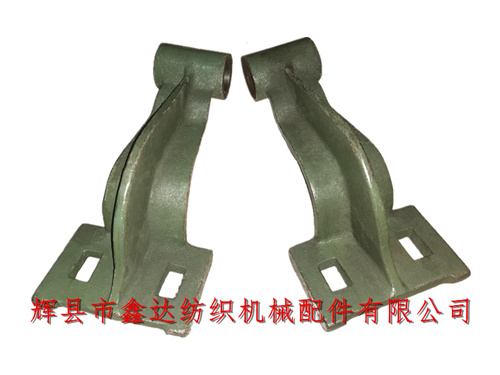

The above figure shows the front and side views of B00-2 let off shaft supporting feet. The shaft hole is perpendicular to the bottom mounting screw. 1511 loom parts include more than 300 products, such as part a heald device, Part B let off mechanism, Part C tension adjustment device, etc. if you need to purchase 1511 textile machine accessories, 44 inch let off shaft, 56 inch loom accessories, inner let off accessories, textile supporting feet and other products, please contact Mr. Yang of Xinda Textile accessories company for details!
