Huixian Xinda Textile Machinery Parts Co., Ltd. has been engaged in the sales of textile accessories for many years. Our company provides ordinary looms, shuttles, automatic shuttle changing looms, and wooden shuttles. The overall dimension of the wooden shuttles of this loom is 343mm (13 ? Inch), the outer width of the bottom is 45mm, the outer width of the upper is 43.5mm, the height is 34mm, and the inner cavity is 32mm wide. The circular arc tube weft slot is suitable for supporting the use of weft bobbins with a length of 18cm. The weft insertion mode is spring yarn, and the production time is 2005.

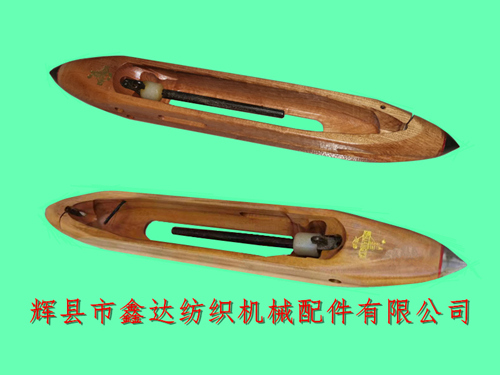

The wooden shuttle used in the automatic shuttle changing loom is made of white porcelain eyes (fired ceramics) with a diameter of 9mm and a length of 16mm. The figure above shows the front and side views of the shuttle of the loom. The root of the shuttle core and the side of the shuttle post are fixed with a pair of pin bolts to prevent the wooden shuttle from cracking. Steel paper is embedded beside the front slot to prevent the elastic yarn mouth from deformation or expansion. Wooden shuttle is a kind of textile wood products, belonging to shuttle textile equipment, which is compressed by high temperature degreasing of hydraulic press.
The brand of this loom shuttle is: double tower. The shuttle tip is designed with embedded spring, non detachable, and red steel paper gasket, which can prevent the shuttle head from cracking and dropping the shuttle tip. The original package of this double tower shuttle is a carton, 55 pieces per box, weighing 20KG; The left and right hands of the shuttle shall be distinguished according to the cutting position.
The shuttle pole of this oil immersed shuttle does not use a wooden shuttle shaft, but uses a nylon shuttle pole+steel pin opening design. The shuttle of ordinary looms, the wooden shuttle of automatic shuttle changing looms, and Xinda textile accessories can also be used for urban large-scale landmarks, home decoration, folk collections, etc. Automatic Shuttle Change Of Ordinary Looms,They have the advantages of being stored for a long time (at room temperature and dry environment for more than 20 years), not easy to deform, good wear resistance, and no static electricity.
