Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided textile accessories Weft Break Stop Parts 450mm Three Sleeves,Weft Break Stop Parts,Shuttle Loom Parts,GA615 Textile Accessories,three sleeves of 450 chicken pecking meter breaking and stopping device. This type of textile device accessories is composed of 72 series shuttle chicken pecking meter accessories. The three main parts 7200-1 (outer sleeve), 7200-2 (inner sleeve), 7200-3 (chicken head shaft, machine head shaft) and machine head shaft rocker arm, middle sleeve rocker arm and swing frame constitute the three sleeves of breaking and stopping.

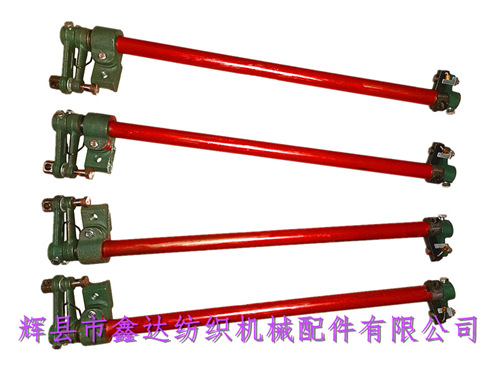

The total length of 450 Weft Break Stop Parts three sleeve is 53cm. 450 refers to the length of 450mm of the red outer sleeve in the above figure, and the outer diameter of the outer sleeve is 21mm. The torsion spring controls the inner sleeve to reset, and the head shaft moves back and forth by the pull rod following the motion of the loom.
The 450 chicken pecking meter three casing is divided into left-hand machine and right-hand machine, which is mainly determined by the left and right hands of the head support block 7215 and the middle casing swing arm torsion spring 7220.Device Three Sleeves, The identification is carried out according to the direction of the casing base (7203) and the head. Packing: Cartons, 5 left and 5 right for each box. The weight of a single three sleeve device is 1kg.
The 450 chicken pecking rice weft breaking and stopping device is mainly used for narrow fabrics (there is a large gap with the machine door). By increasing the length of the red sleeve, it can ensure that the chicken needle can detect the weft yarn entering the cloth surface during weft detection. The textile accessory chicken pecking rice can be used in shuttle looms of 1511, 1515, GA615, GA611 and other models.
The length of the three broken weft stop sleeves can be divided into 280mm, 350mm, 380mm, 450mm, 500mm, 550mm, 600mm and other specifications. If you need to purchase shuttle textile accessories, chicken pecking rice, broken weft stop accessories and other products, please contact Mr. Yang of our company for details, and sincerely welcome Chinese and foreign customers to visit!
