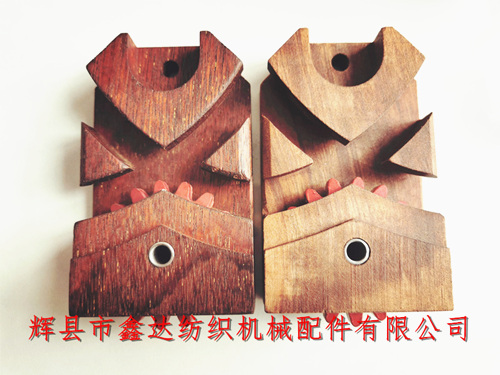

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Curved Ribbon Machine Parts 10T Shuttle Seat, curved ribbon weaving machine accessories single gear shuttle seat (10 teeth) wooden products. The parameters of the shuttle seat are: the height of the shuttle seat body is 103mm (excluding the red steel paper gear), the width is 64mm, the thickness of the upper part of the shuttle seat is 24.5mm, and the thickness of the lower part is 27mm (fixing the red steel paper gear). The upper inner width of the shuttle track is 12.8mm, and the lower part is 16.5mm.
The diameter of the red gear installed on the shuttle seat of the weaving machine is 54mm, with 17 teeth and a thickness of 7mm. The diameter of the central circular hole is 9mm. Due to the fixed red steel paper gear on this type of shuttle seat, it is also known as the "single gear shuttle seat". Each weaving machine uses 7 shuttle seats and 6 matching curved shuttles, both of which belong to textile wood products.
The inner diameter of the steel pin sleeve for fixing the red steel paper gear is 6.5mm, and it passes through the entire shuttle seat. The weight of a single shuttle seat is 115-118 grams; Normally, the minimum order quantity for the shuttle seat of the weaving machine is 14 pieces, and the delivery time is approximately 30-35 days.
Textile wood products have the characteristics of good wear resistance, no static electricity, and low noise during use. The dimensions of the semi-circular groove on the upper part of the shuttle seat (as shown in the figure above) are: diameter 26.5mm, depth 12.5mm, depth from top to bottom 22.8mm, and diameter of the circular hole 7mm; If you need to purchase accessories for curved ribbon weaving machines - shuttle seats and curved shuttle products, please contact our company's Manager Yang for negotiation.
