Huixian Xinda Textile Machinery Accessories Co., Ltd. provides some metric and British loom accessories - shuttle rotor disc F8. The difference between metric loom and British loom generally lies in the outer diameter of the shaft. The inner hole diameter of metric shuttle rotor disc F8 is 42mm, and the inner hole diameter of shuttle disc used by British loom is 40.5mm, and the width of keyway used is 9.5mm.

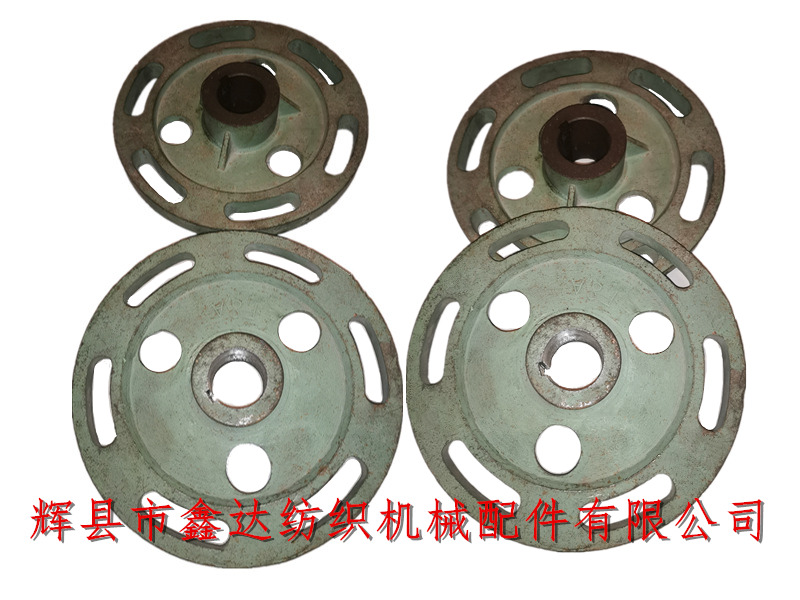

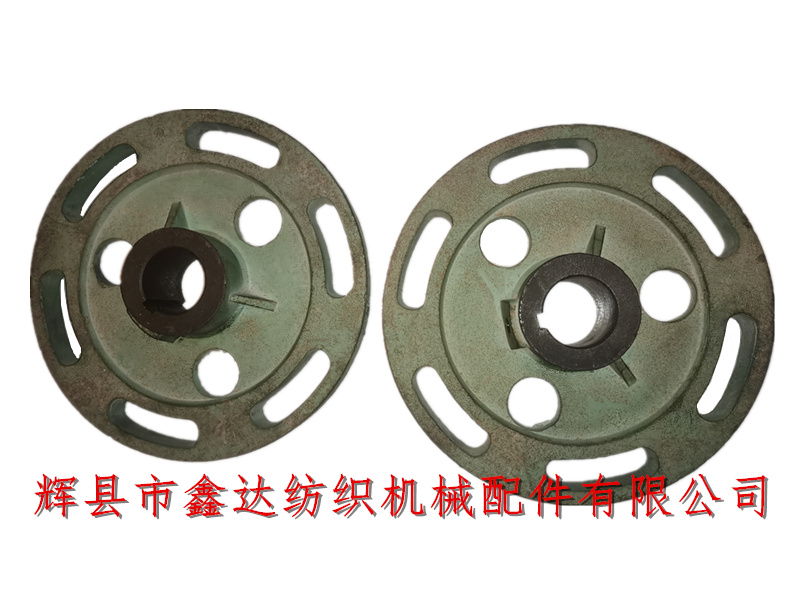

The figure above shows the shuttle tray used in the British loom, also known as "rotor tray" and "shuttle tray", with an outer diameter of 238mm, an edge thickness of 18.6mm, and the weight of a single accessory is 3.9kg.

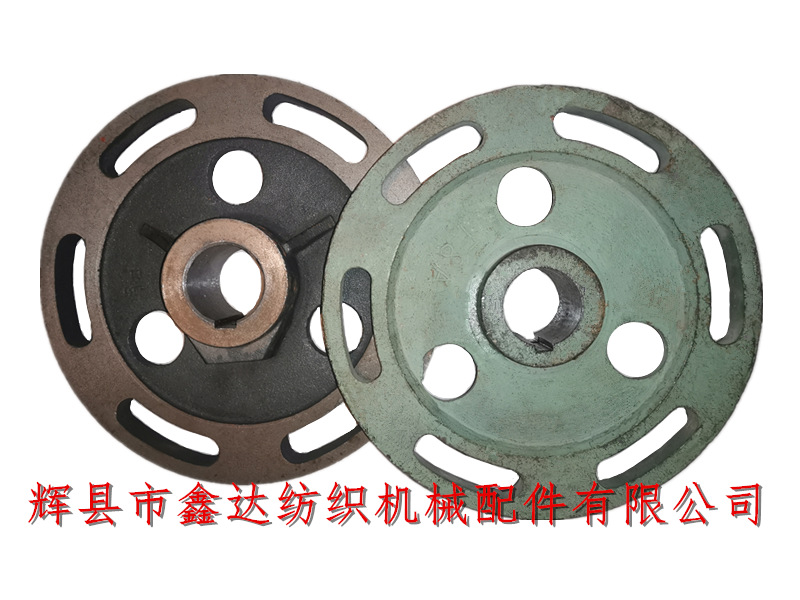

The left side of the figure above is the metric shuttle tray and the right side is the English shuttle tray. Pay attention to the difference between the keyway width and the size of the inner hole. The keyway width used in the metric system is 12mm and the English keyway is 9.5mm. They are fixed at both ends of the tread plate shaft (middle shaft) of the loom, one on each side.
Domestic British looms are generally produced in the 1970s and 1980s. According to the British standard production and design, the weight of its accessories is larger than that of metric looms, which is famous for its firmness and durability. The British design generally exists in 1511 small narrow loom. 1515 and GA615 looms have no British model because their production and design time is later than 1511.

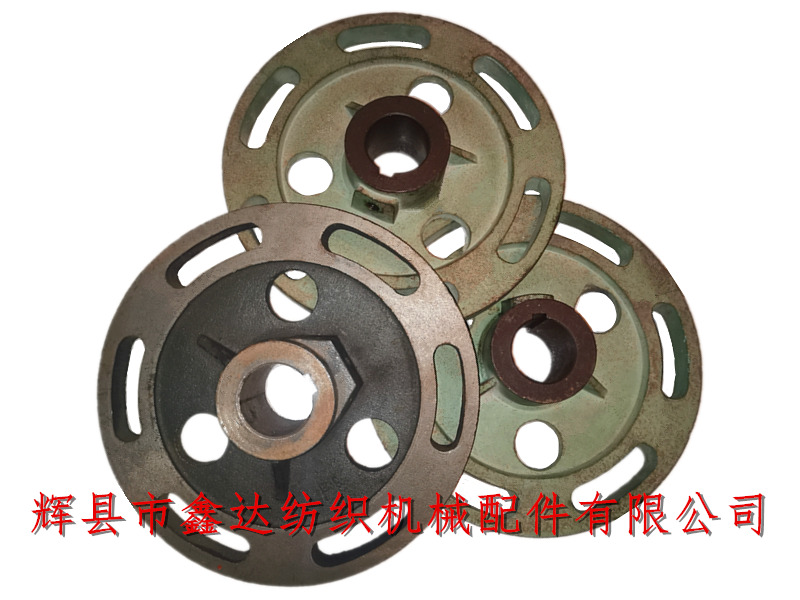

The outer diameter of the metric loom F8 is 240mm and the single weight is 4.3kg. The above is the parameter comparison of the male and British shuttle rotor disc (hereinafter referred to as the shuttle disc and rotor disc). Different designs meet different needs. If textile enterprises need to purchase such male and British loom accessories, they can contact Mr. Yang of our company for details!
