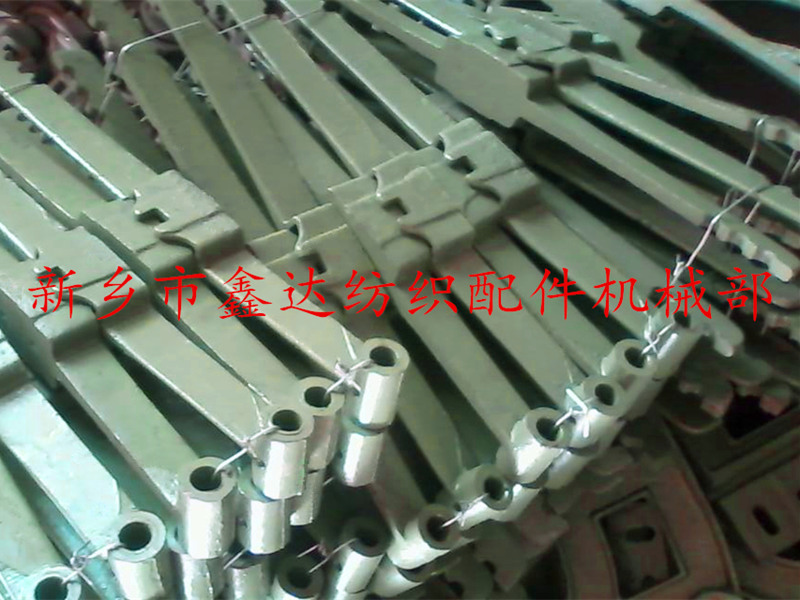

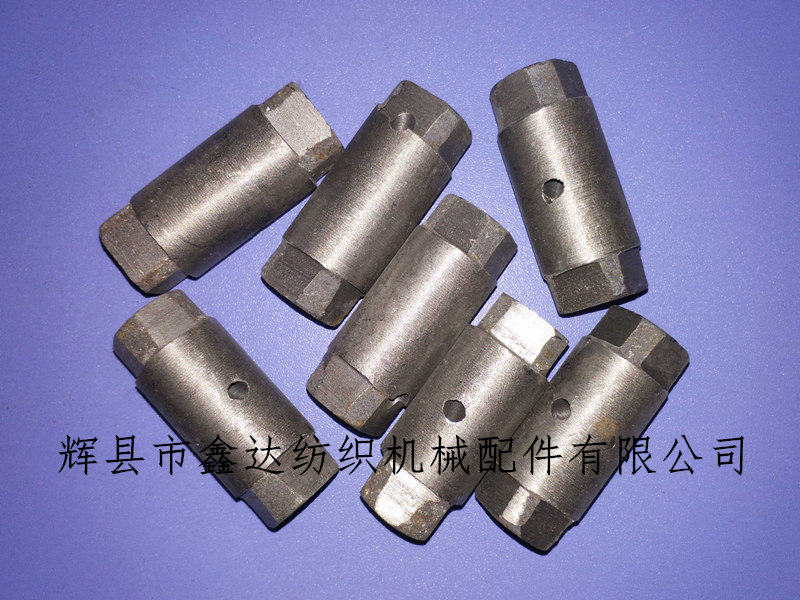

Xinda Textile Machinery Parts provide A6 textile machine pedal heald rod rotor mandrel.The Mandrel Of Treadingrod For Textile Machine,The product is used in the pedal shuttle loom. The A6 rotor mandrel used in plain weaving machine is 55mm in length, 22mm in diameter and square cross section at both ends. The mandrel should be stuck in the oil box groove of pedal heald rod to prevent the mandrel from rotating with the heald rotor. The material is pig iron, the filling inclined hole is 30 degrees, and the diameter is 4-5 mm.

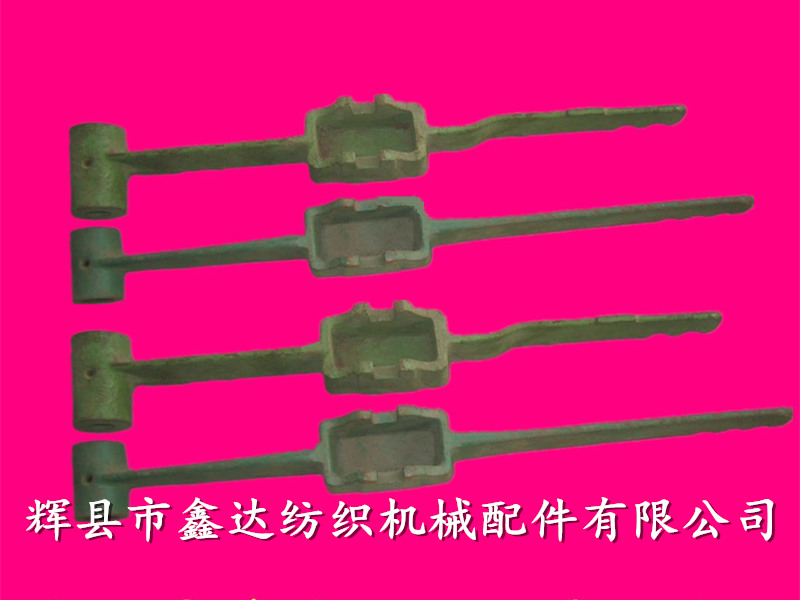

Various kinds of textile machine pedals are shown below.
Type 1515 plain weave loom uses a pedal 3100-6, which is straight in shape and can be used regardless of length or left or right.

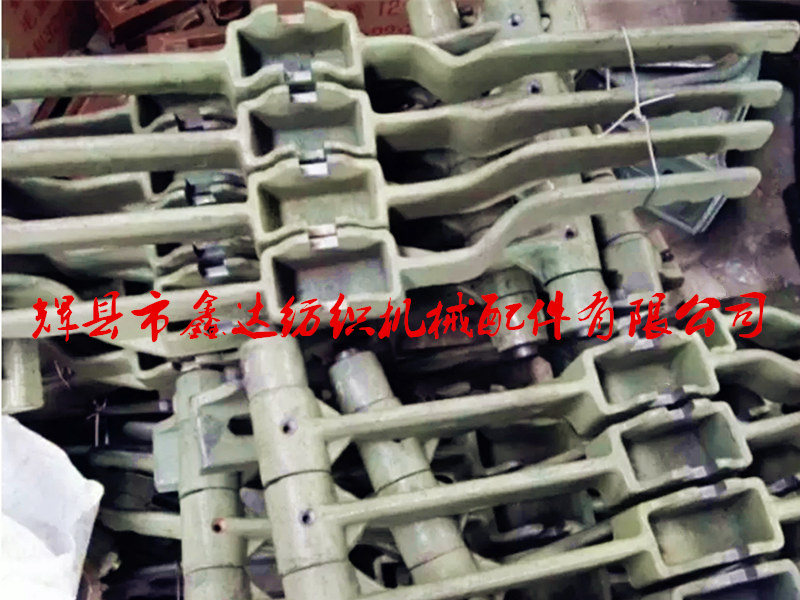

The above picture shows the heddle rods of 1515 twill four-pedal discs with different lengths, and the installation sequence needs to be arranged according to the shape of the pedal, 1/2 twill, 3/1 twill, 2/2 twill using the S10 rotor mandrel (length 48 mm, diameter 24 mm), and the plain twin-pedal device using the A6 rotor mandrel.
Heddle, Rotor, Mandrel, A6 Textile Machine Heddle Rotor Mandrel - Huixian Xinda Textile Machinery Parts Co., Ltd. Welcome all textile enterprises purchase negotiation!
