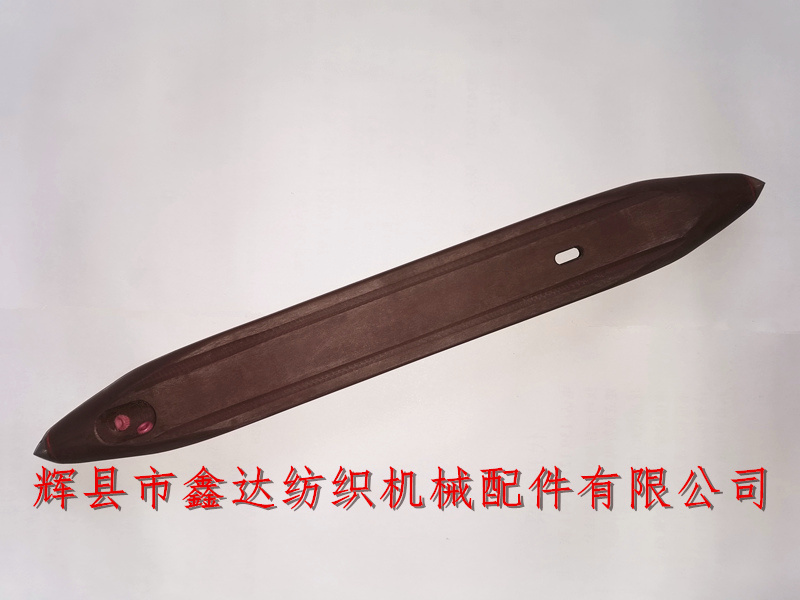

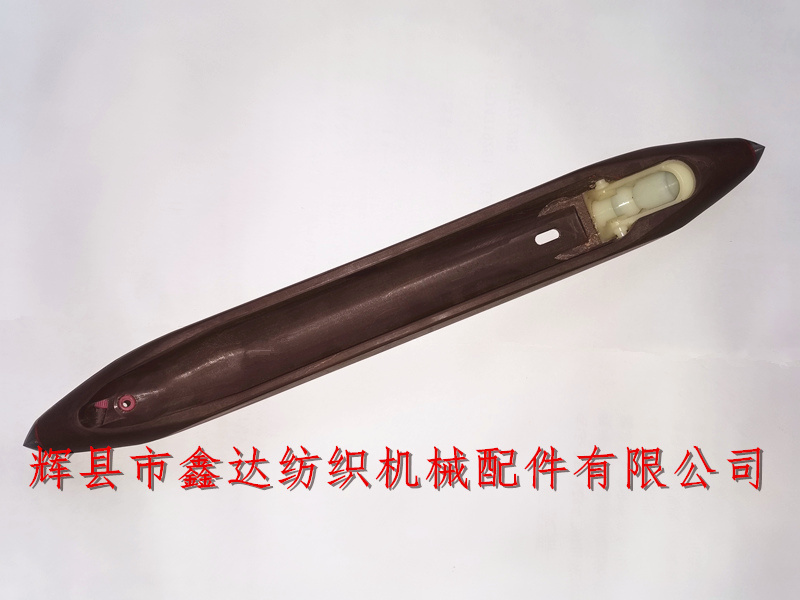

Our company provides three porcelain hole textile equipment, Spinning Coreless Nylon Shuttle 415mm,the color of which is dark red, the total length of the shuttle body is 41.5cm, the height of the shuttle wall is 39mm, the width of the shuttle bottom is 47.6mm, the width of the shuttle chamber is 33mm, the effective length of the inner cavity is 24.5cm, and the depth is 33.3mm. The Pu collet adopts the double groove design, which can stabilize the horizontal placement of the nylon shuttle. The three pink porcelain holes are fixed by 45 ° angle Yes. Specification: wool shuttle 415 * 47.6 * 39.

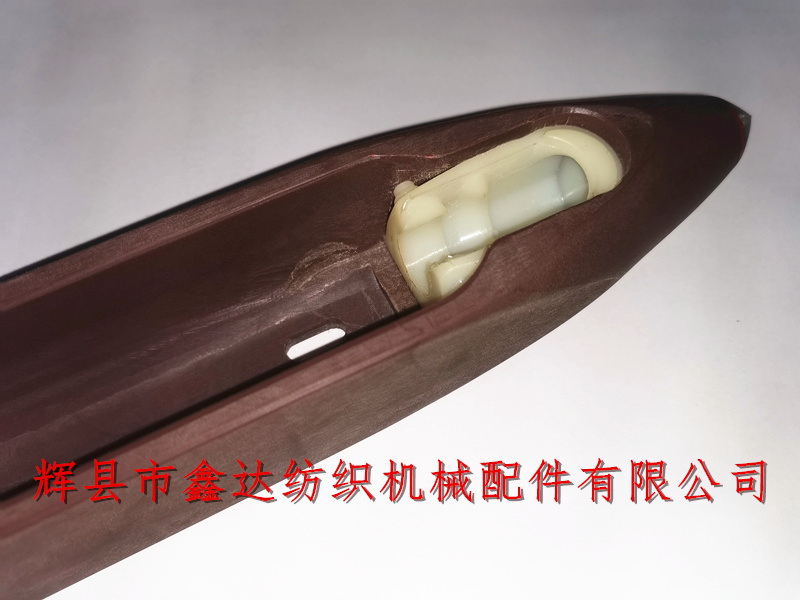

The collet of the export type wool nylon shuttle is shown in the figure above. A clamping groove is added inside the collet, which is similar to the shape of the bobbin used by the coreless shuttle ts-7, ts-9 and other models. A weft detecting groove is reserved at the bottom of the shuttle.Textile equipment,nylon shuttle,coreless shuttle.

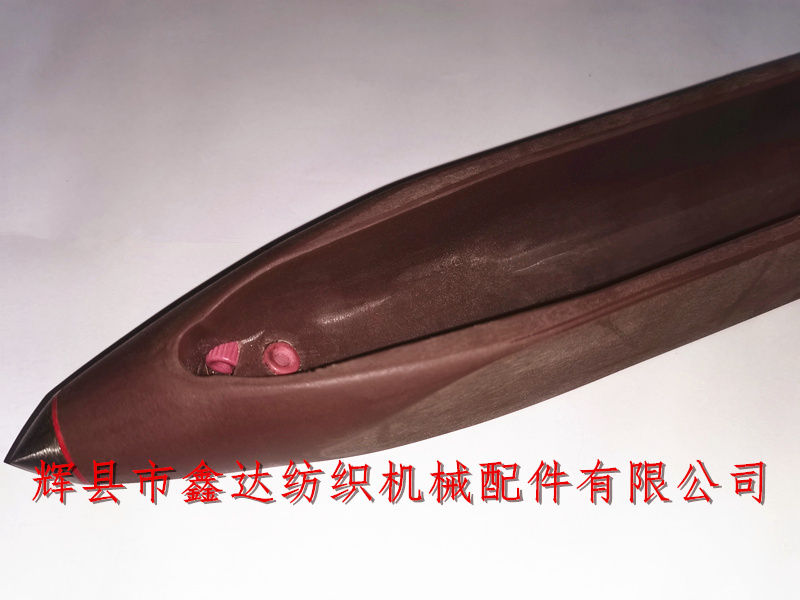

The extended nylon coreless shuttle adopts the design of 45 ° porcelain hole, which can reduce the angle of weft drawing out from the shuttle bottom, increase the resistance of weft drawing out, and prevent the occurrence of weft shrinkage. Alumina ceramic eye is wear-resistant and suitable for high-speed yarn friction.

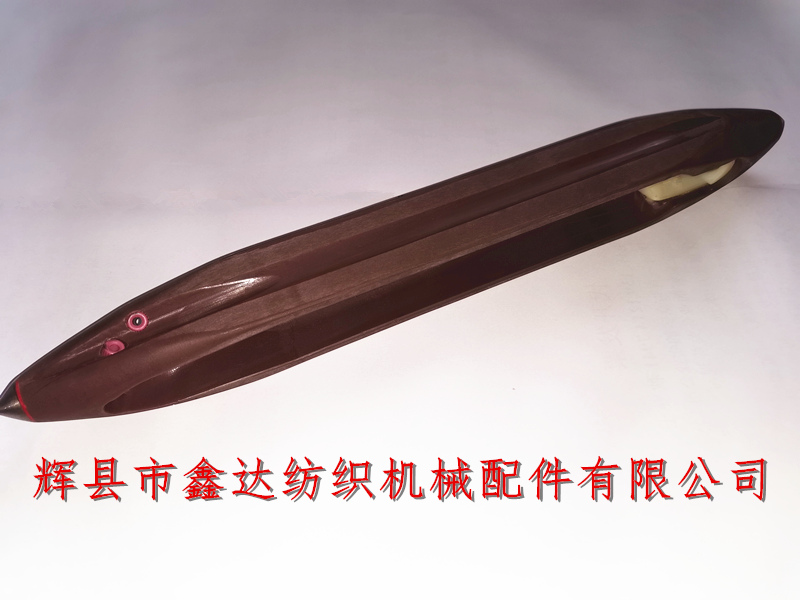

Nylon shuttle is made of detachable iron shuttle tip by injection molding. The shuttle wall is flat as a whole, the extended shuttle cavity has a large capacity of yarn, and all angles meet the industry standards. The chute for installing nylon collet on the shuttle bottom is shown in the figure above.
The packing box of this nylon shuttle for textile equipment is a carton, 50 pieces in each box, the weight of a single shuttle is about 0.48kg, and the starting order is more than 1000 pieces. The bottom of this nylon shuttle is designed with double flow slots, as shown in the following figure:
Xinda Textile, a supplier of textile equipment, lengthened nylon shuttle and injection molding coreless shuttle, has been committed to the supply of all kinds of special textile equipment and shuttle machine accessories for a long time, and supports the customized processing of opening mould. Welcome all import and export companies to contact and discuss cooperation matters!
