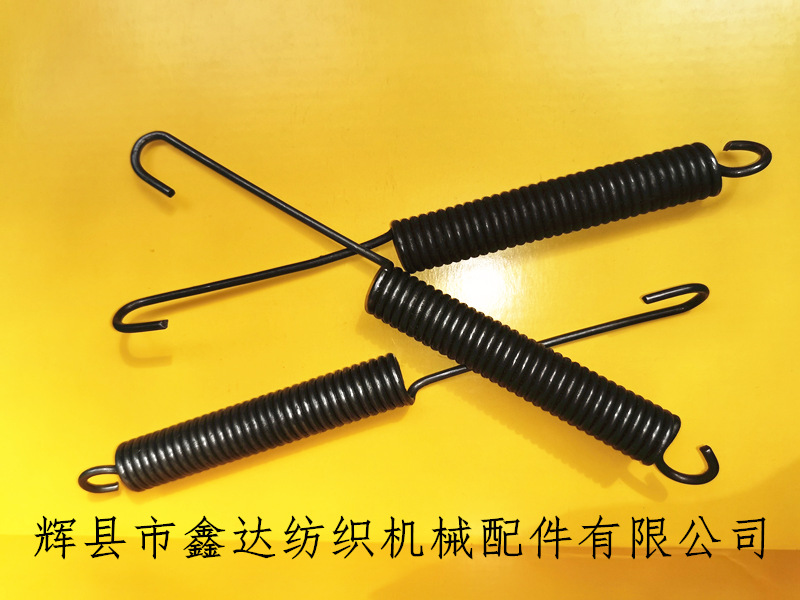

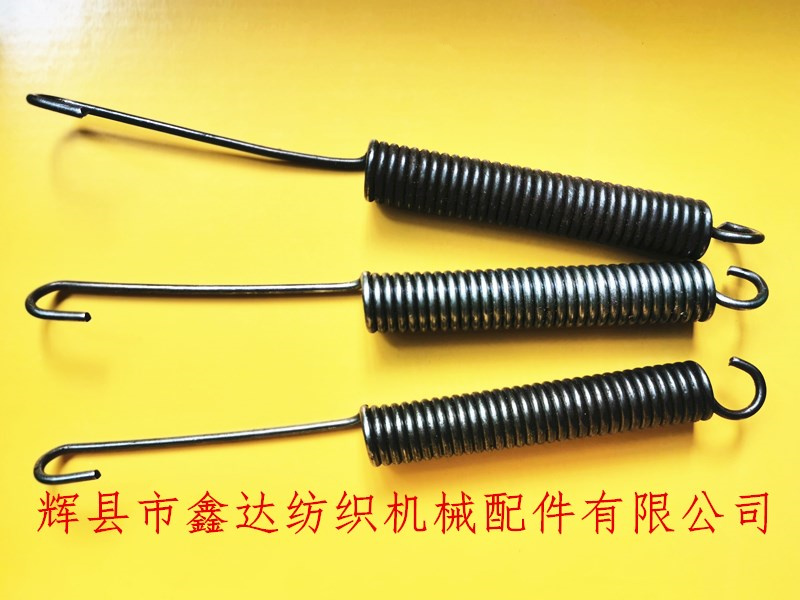

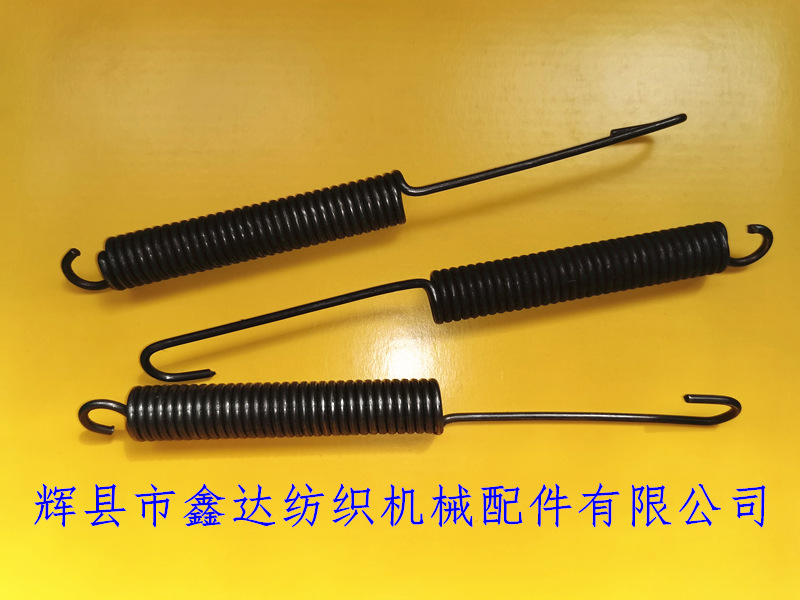

Xinda Textile Machinery Accessories Co., Ltd. provides s621 corduroy tension spring accessories,Corduroy Accessories S621 Tension Spring, s625 sector bar tension strap, s619 flat pull handle, etc. the outer diameter of s621 tension spring is 15mm, which is processed by φ 2.5mm spring steel wire. The spring body length is 82.5mm, and the hook steel wire length is 82mm. Each loom uses one piece, which is connected with S620 tension spring hook and 7100-6 flat pull shaft.
Our company provides more than 100 kinds of textile spring products, such as textile machine tension spring, corduroy tension spring, 2 / 2 twill torsion spring, 4x4 multi shuttle steel leaf spring, 1511 loom tension spring, wooden shuttle compression spring, shuttle bottom spring, etc. Each spring has its own purpose. In many cases, the toughness and firing process of the spring directly affect its service life. The expansion force of the spring (including the 7-shaped hanging spring of the wooden heald frame) applied in various parts has corresponding industry processing standards!
The springs used for corduroy opening accessories mainly include s600-8 tension spring (640mm in total length, consisting of s636 and s635) and s621 tension spring. 5100-10 heald spring, 5174 fixed hook, t00-9 heald spring (spring body 264mm), t50-1 heald spring (length 382mm), T63 positioning wheel compression spring, h212-0532 iron clip hook spring, etc. are used for the multi arm opening device.Corduroy accessories, tension spring, textile spring.
Corduroy accessories, s621 tension spring and textile spring are packed in woven bags with an initial order of 1000 pieces, color: black. Corduroy flat heald tension spring can be processed and customized according to customers' requirements. Please provide drawings or samples for processing.
