Huixian Xinda Textile Machinery Accessories Co., Ltd. is a professional supplier of 2401/2402 parts for the shuttle picking disc (rotor disc) of 1515T loom. The split design can facilitate the installation and disassembly of the mechanic. The assembly of 1515T-2401 and 2402 constitutes the rotor disc. Its overall dimension: the total length is 27.05cm, the width is 142mm and the total thickness is 54.5mm; The diameter of the inner hole of the shuttle disc is 42mm, the width of the keyway of the pedal shaft is 12mm, and the center distance of the arc groove for fixing the shuttle rotor is 230mm.
The cracked rotor disc is commonly used on the modified 1515 loom. Each loom uses two sets, which are respectively installed under the outer side of the loom wallboard for the completion of the shuttle throwing action. The 2401/2402 shuttle throwing disc is an important part of the shuttle throwing part of the textile machine, and the quality determines the stability of the shuttle throwing.

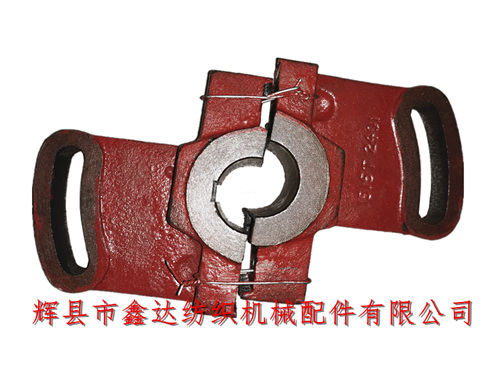

As shown in the figure above, the color of the shuttle rotor disc (2401/2402) is red, which means that its material is nodular iron (manganese steel + gray pig iron). The thickness of the shuttle rotor fixing groove of 2401/2402 rotor disc of 1515t loom is 21mm, the inner width of the arc groove is 18mm, and the split combination of 2401 and 2402 is fixed with M14 hexagon bolts.
The single weight of textile accessories - 2401 * 2402 shuttle rotor disc is 4.4kg. The shuttle picking disc and rotor disc keyway of 1515T loom are located on the 2402 split. 1515k and 1515T looms are improved and optimized on the basis of 1515 old looms, with good stability, which can be selected and adapted to the needs of different fabrics.
For shuttle textile enterprises, weaving mills, foreign trade companies and foreign customers who need to purchase picking disc (rotor disc) 2401/2402 and other accessories of 1515T loom, please contact Mr. Yang of our company for consultation and negotiation.
