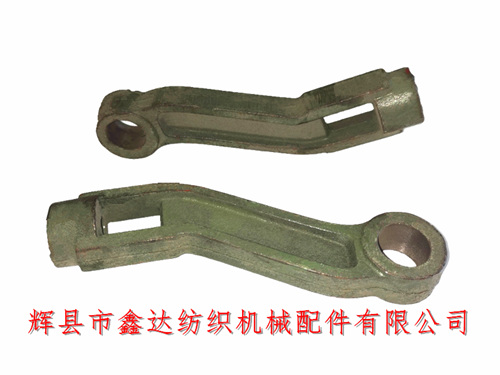

Huixian Xinda Textile Machinery Parts Co., Ltd. provides G1515-0209 starting link GA615 weaving machine starting accessories. G1515-0209 Starting Rod GA615 Loom Part, The material of the starting link 0209 is HT15-33, which is connected to the weaving machine starting link core shaft F214 and fixed on the 1515-4302XG1515-0208 switch arm. This weaving machine starting support foot is not divided into left and right hands, and the number of uses for each weaving machine is one.
The part numbers of the starting brake accessories for the weaving machine are distinguished by the 1515-4100 and GA615 type-0200 segments. The accessories used for the GA615 weaving machine are appropriately improved based on the 1515 or G1515 models.
The screw hole on the 0209 starting connecting rod is a fixed M12 double headed screw (F210) and starting pressure spring F211, and the inner diameter of the circular hole fixing F214 is 20mm.GA615 Loom Parts;
G1515-0209 Starting Rod GA615 Weaving Machine Starting Accessories
