Huixian Xinda Textile Machinery Parts provides GA615-2109 Bush For Picking Bowl Cast Steel, shuttle rotor bearings with cast steel textile bushings. GA615 accessories - shuttle component 2110 (Picking Bowl)+2109 shuttle rotor bearings+F13 screw cores form the shuttle assembly of the weaving machine. The inner hole diameter of the 2109 Picking Bowl Bush is 20mm, the outer ring diameter is 36mm, and the total length is 31mm.

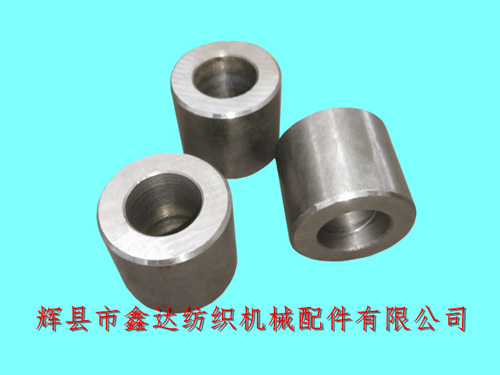

The above picture is a side view of the shuttle rotor bushing 2109, which is made of cast steel and has a polished surface. It not only increases the wear resistance of the product, but also benefits the lubrication effect of the engine oil.
The shuttle feeding structure of the weaving machine is located on the outer side of the wall panel, with the 2109 rotor sleeve in contact with the shuttle feeding (rotor) disc of the weaving machine. Its tabletop is higher than the thickness of the rotor, which can support the shuttle feeding rotor to collide with the shuttle feeding nose during smooth rotation, thereby generating shuttle feeding force.
GA615-2109 is processed by Yuan Che, with chamfered edges and no oil groove in the inner cavity. Each GA615 loom uses 2 rotor bushings, and the packaging is 50 per bag (woven bag).Bush For Picking Bowl,Cast Steel Bush For Picking Bowl, If you need to purchase GA615 shuttle rotors, loom bearings, textile bushings, cast steel GA615 accessories and other products, you can contact Mr. Yang from our company for consultation.
