Our company has been specialized in providing all kinds of shuttle loom shutdown accessories for a long time. The Bracket For Front Cross Stop Rod B43/B44 belongs to the general accessories of loom and is suitable for all types of shuttle looms such as 1511, 1515 and GA615. The parking accessories B43 and B44 form the left hand and right hand. The loom shutdown accessories can assist in stopping the machine when weft and warp break.

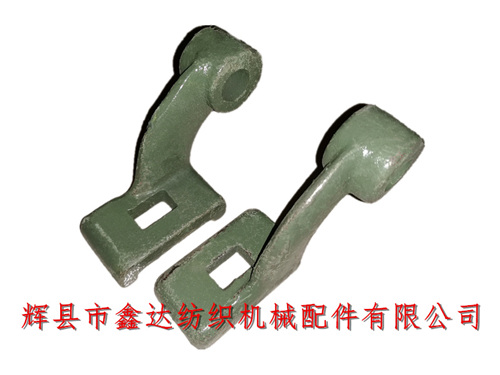

As shown in the figure above, B44 is above and B43 is below. They are fixed on the front beam (gear) of the loom. The diameter of the intermediate shaft hole is 16mm and the material is HT15-33 pig iron. The weight of a single parking shaft support foot is about 0.4KG. One for each loom.
The length, width and height of the base of the Bracket For Front Cross Stop Rod B43/B44 are 68mm, 38mm and 80mm. There is a refueling hole on the upper part of the shaft hole, and the width of the shaft hole is 26mm. For detailed information on loom accessories, stop supporting feet, stop accessories, stop shaft supporting feet, parameters, price, starting order quantity and so on, you can contact our company.
The rectangular hole of the base of the parking shaft supporting foot B43 / B44 of the shuttle loom parking accessories is 2cm long and 12.5mm wide. It is fixed at both ends of the front cross beam of the loom with M10 * 40 carriage screws (half round head square neck bolts), and B45 (supporting foot in the parking shaft) is used in the middle.
