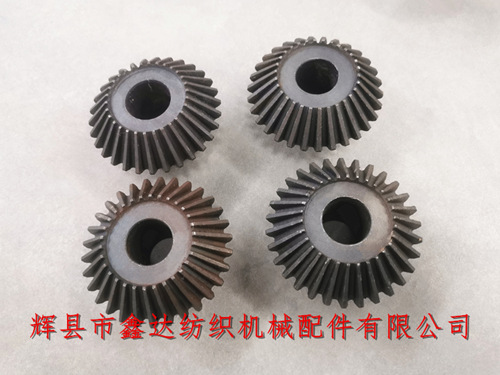

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Let-off Umbrella Gear B36/B37 (30T/30T),1511/1515 warp saw bevel gears B36/B37 (30T/30T). B36 is a bevel gear used for warp saw gears, with an inner hole diameter of 22mm, a module of 2.54, 30 teeth, and fixed screws of M10X20. The installation position is B12 friction serrated axle; B37 is a side shaft bevel gear with an inner hole diameter of 24mm, a pitch of 10, and 30 teeth. It is connected to B17 or 3426 through the side shaft;
The small hole is B36 and the large hole is B37(Let-off Bevel Gear), both of which are processed by milling teeth. Two bevel gears are used for meshing, and each weaving machine is used in one set (shuttle loom used one B36 and one B37).
1511/1515 warp sending umbrella gears come in various specifications: 30 teeth/30 teeth, 24 teeth/50 teeth, 20 teeth/40 teeth, etc. Their different gear ratios can change the speed of the warp sending device inside the loom, and can be matched with different fabric products to effectively ensure the uniformity of the warp yarn on the loom (which is more obvious near the end of the weaving shaft).
Relatively speaking, the larger the gear ratio of the warp sending umbrella gear, the faster the warp sending speed of the weaving machine. When weaving warp and weft structures with lower density, the speed of the warp sending gear is also faster. If you need to purchase 1511/1515 warp sending umbrella gears B36/B37 (30T/30T), textile machine umbrella gears, Let-off Umbrella Gear,warp sending gears, and weaving machine accessories, please contact Mr. Yang from our company for more information!
