Huixian Xinda Textile Machinery Parts Co., Ltd. provides heavy-duty weaving machine wooden shuttle paper blanket shuttle 552 * 53.5 * 56.7mm. Heavy Duty Blanket Loom Wooden Shuttle,The shuttle tip of the heavy-duty shuttle is oval shaped, with a bottom length of 38.5mm, a width of 25.4mm, a cutting length of 19mm, and a depth of 22mm. The width of the shuttle cavity is 38mm, the effective length is 296mm, the depth is 46mm, and the total length of the shuttle cavity of the wooden shuttle is 365mm.

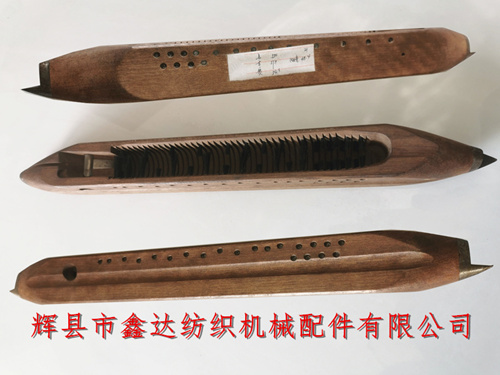

The above picture is an overall photo of the shuttle. There is a groove on the upper plane of the shuttle body in the lower left position: the length is 51mm, the width is 4mm, and the depth is 6.8mm (from the upper plane of the shuttle). There are two rows of four shuttle hairs on each side of the rear of the shuttle body, and 13 shuttle hairs (outer diameter 6mm, inner diameter 3mm) are arranged in an orderly manner on the side of the shuttle body, alternately long and short.
The front of the heavy-duty wooden shuttle is equipped with a hardware spring plate (commonly known as a large aircraft, with an inner width of 13mm at the inclined slot position inside the shuttle body), which is used to provide continuous resistance to the weft yarn. The side yarn outlet hole (conical hole) does not have a porcelain eye, and the inner hole diameter is about 20.4mm (outer side) and 14.4mm (inner side). The total length of the shuttle is 552mm, the outer width of the shuttle bottom is 53.5mm, the outer width of the upper part is 53mm, and the total height is 56.7mm. The two sides of the shuttle are at right angles to the shuttle bottom, and its center of gravity angle is achieved through an eccentric shuttle head design (the shuttle head is biased towards the yarn output side).
The viewing angles in the above figure are: shuttle bottom, front, and side. The distance between the scratch grooves on the washboard inside the shuttle is 7mm, and the tooth depth is 3mm. The weight of a single shuttle is 834 grams. If you need to purchase textile wooden shuttles, papermaking blankets, shuttles, weaving machine shuttles, heavy-duty shuttles and other textile wooden accessories products, or to learn more about the detailed parameters and dimensions of this wooden shuttle, please contact Mr. Yang from our company for consultation.
