Huixian Xinda Textile Machinery Accessories Co., Ltd. provides loom tool key puller 8-110B, which is specially used for the hook head key of the pin puller. The hook head key D is used at the crankshaft, tread plate shaft, motor wheel, propulsion shaft and other positions of the loom. During the disassembly of its components, a professional textile tool key puller (also known as pin puller) needs to be used. The part number of the tool is 8-110B. Another pin puller GA618-G0100 is cylindrical. Due to its simple design, Therefore, the use effect is not as good as 8-110B.

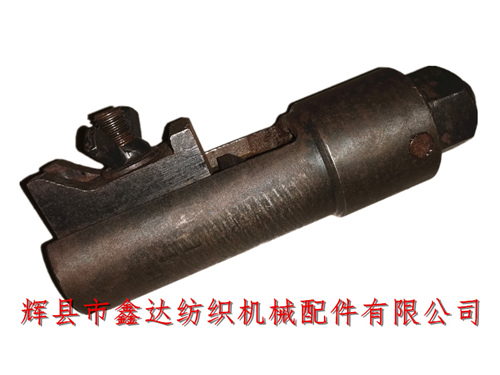

The above figure is the side view of 8-110B pin puller. It is a complete set of assembly. The pressure block at the front (left in the figure) can be installed reversely. The specifications of the width of the removed hook head key D are 6 points, 8 points, 10 points, 12mm and 14mm. After independent assembly as required, the tail can be operated by turning the wrench (hexagon nut, 29.5mm out of plane width).
The above figure shows the components after the key puller is completely disassembled. The fishtail nut is an ordinary M10 thread. The diameter of the main threaded rod is 20mm and the total length is 15cm. The circular platform thickness of the tail fixed support screw is 23mm and the cylindrical diameter is 29.6mm.
The inner width of the upper notch of the pressure block is 10mm, the inner width of the lower notch is 14mm, the height of the front of the pressure block is 37.5mm, the height of the tail is 28mm, the total length of the main body is 52mm, the width is 24.6mm, and the diameter of the inner hole of the head screw hole is 10.4mm.
The weight of a single 8-110B key puller is 1.2kg, which is suitable for the disassembly and assembly of all kinds of shuttle textile machines. Textile tools, loom maintenance tools and loom installation tools include a variety of gauges, special wrenches, reamers, rolling blocks, straightedges, calibrators, etc. if you need to purchase key pullers (pin pullers) textile machine tools, please contact Mr. Yang of Xinda Textile accessories company!
