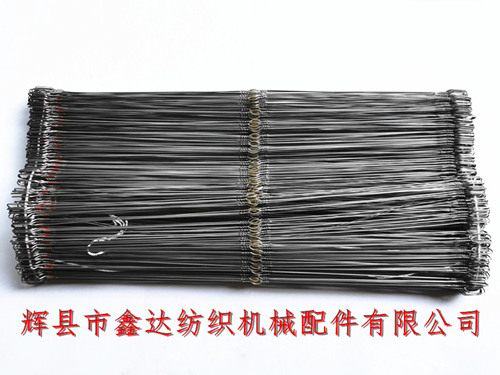

280 heald yarn 305 steel wire heald 330 nylon palm yarn is a common specification in domestic textile machinery. 280 heald silk standard is suitable for 1511 44 inch narrow width loom. 305mm wire heald is used in 56 inch, 75 inch wide loom and 110 inch loom. 330mm nylon palm yarn is used in ga741-ga799 series rapier loom. 280,305 Steel Wire Heald,330 Nylon Wire Heald,Nylon heald has the advantages of rust prevention. Due to tin welding surface treatment, the steel heald has the cost High, but there is no electrostatic phenomenon in the process of use.
According to the different materials, the healds of 280mm, 305mm and 330mm looms can be divided into: nylon covered healds, stainless steel sheet healds, tin welded wire healds; according to the size of heald eyes, they can be divided into various specifications, such as A3, A6, a7, A9, A10, etc., and the sizes of heald holes increase in turn;
According to the thickness of single steel wire, it can be divided into: 0.3 mm, 0.4 mm, 0.45 mm, 0.55 mm, 0.6 mm, 0.7 mm, 0.9 mm and other specifications. Because the ordinary textile heald wire is made of two steel wires side by side by tin welding, the actual thickness needs to be multiplied by 2 on the basis of the original thickness, and the soldering space of 0.1 mm should be increased.280,305 Steel Wire Heald,330 Nylon Wire Heald.
The commonly used 280 heddle wire specifications are nylon 0.45xa6 and steel wire 0.4xa6. The minority nationality cloth is usually made of steel wire, which is not only smooth but also labor-saving. The package of textile heald yarn is generally 500 pieces / package, and each package weighs about 0.35 kg.
If you want to buy Textile heald, loom palm, 280mm heald, 305mm steel heald, nylon palm and other textile equipment, please contact our company for consultation, welcome the majority of textile mill inquiry!
