Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing 44 textile machine accessories A1 for a long time. Bracket For Treadle Heel A1, The fixed position is on the rear crossbeam (P5 Back cross rail) of the weaving machine. The outer length of the tread rod hanging foot is 186.5mm, the width is 173.5mm, and the length of the inner side (fixed tread rod) is 141mm. The diameter of the inner hole for installing the tread rod bolt is 20mm. The loom hanging foot A1 is installed in the middle of the long groove in the rear crossbar P5, sitting down and roughly horizontal.
44 textile machine accessory A1 Bracket For Treadle Heelt is an important part of plain tread plate opening device, which is used to fix A00-1 Treadle(short heald rod) and A00-2 (long heald rod,Treadle). The material is gray pig iron HT15-33.
The Bracket of 1511 Treadle heel A1 are left and right. The weight of a single hanging foot is 2.3kg, the total height is 87mm, and the width of the bolt fixing groove is 15mm. It is fixed with M12 * 40 semi-circular head square neck bolts (referred to as carriage screws).

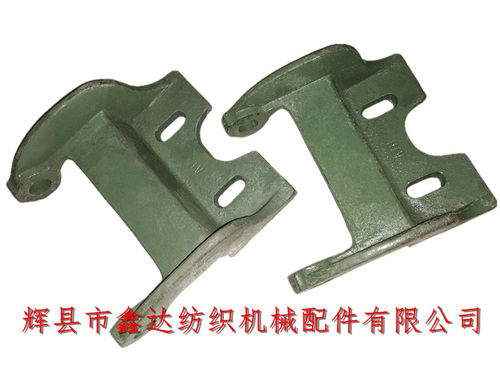

Each 1511 44 inch loom uses a loom hanger A1. The above picture shows the front and back of the heald hanger. The heald bar under the loom is mainly used for the up and down reciprocating movement of the heald frame, so as to form the shed.
The minimum order quantity of textile machine accessories, heald bar and loom hanging foot is 10 pieces. Textile machinery parts - Bracket For Treadle Heel A1 heald bar hanging foot is the frosted pig iron part of heald device. If you need to purchase textile machine accessories (hanging foot) and other products, or know the detailed heald bar hanging foot parameters, please contact Mr. Yang of our company!
