Xinda Textile accessories has long provided shuttle textile equipment accessories nylon collet accessories for coreless tubes of silk looms.Nylon Tong Hold For Coreless Tubes Looms, Pu plastic collets are divided into more than three specifications. The collet used in the 350 silk loom shuttle is used in conjunction with the coreless weft tube with a neck diameter of 10.5mm. The TS-7 collet is used in conjunction with the coreless tube with a neck diameter of 12.5mm. The overall dimensions are different. The silk loom shuttle is relatively narrow and short, so the nylon collet used is relatively small, The chuck used by it also has two specifications (with edge and without edge, which can be judged according to whether there is a bottom edge).

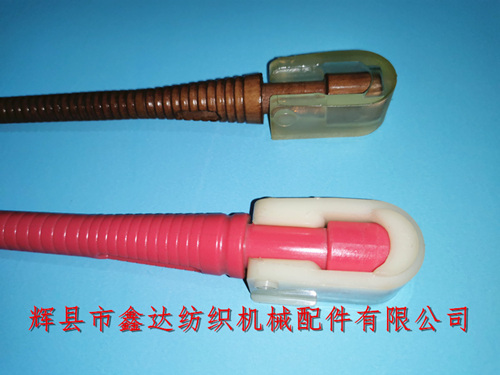

As shown in the above figure, the white is the nylon collet used in TS-7 shuttle. The collet of this silk loom is processed from industrial nylon. The color of white reflects that the selected material is non recycled, and the quality is stable and reliable; Transparent silk loom collets are commonly used on silk loom shuttles with a length of 350mm, a bottom outer width of 35mm and a height of 25mm. The size is relatively small, but the toughness is better than TS-7 white collets. Textile collets belong to textile equipment accessories, and their types are diverse, which can meet the use of silk looms of different models and specifications. The length of coreless weft tubes used ranges from 210mm to 310mm.
No. 2 in the above figure is divided into those with and without bottom edge. The nylon collet No. 2 in the figure is without bottom edge and is packed in transparent bags, with 50 pieces per bag, with a minimum order of 50 pieces. The weight of a single coreless collet is about 0.01 kg. No. 1 is the weft tube and coreless collet used by TS-7 shuttle. The bottom is edged, and the upper part is crescent shaped near the tail. The weight of a single nylon collet is about 0.12 kg.
The above figure is the back view of the collet. The back of the transparent silk shuttle collet is frosted. Because it has no bottom edge, it needs to be fixed with glue. After frosting, the firmness of the fitting after gluing can be increased. The following figure shows the coreless collet used in the shuttle of 350 silk loom:
If textile customers need to purchase textile collets,Nylon Tong Hold For Coreless Tubes Looms, nylon collets,Nylon Pirn, coreless tubes, silk loom collets, textile equipment accessories and other products, please contact Mr. Yang of Xinda Textile accessories for details!
