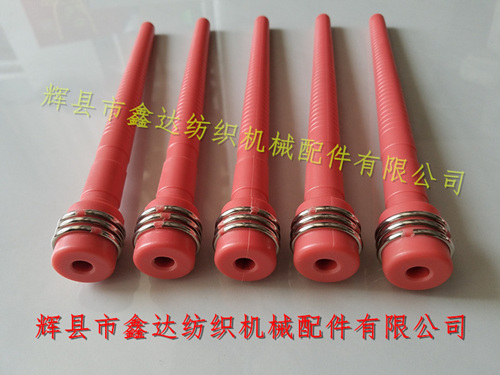

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Cop Changing Loom Nylon Pirn (200 Bobbin), shuttle machine textile equipment and plastic accessories - D27*200mm changing shuttle bobbins weaving weft tube (Plastic Pirn). The automatic changing weaving machine uses a variety of lengths ranging from 190-220mm for weaving purposes, with a total of five specifications. Among them, D27*200mm refers to the total length of the tube (spool) being 20 centimeters, and the outer diameter of the three fixed steel rings being 27mm.
The diameter below the fixed position of the steel ring in the above picture is 23mm, the center to center distance between adjacent steel rings is 4.25mm, the diameter of the steel wire is 2.5mm, the total height of the plastic weft tube big end is 26mm, and the diameter of the bottom inner hole is 7.8mm;
The diameter of the neck of the D27*200mm shuttle tube weaving weft tube (weft tube) is 16.3mm (at the position of the protruding long surface in the middle), and the weight of a single D27*200 pirn is about 50 grams. The packaging specification is 400 pieces/box, and the total weight is about 20.5 kilograms.Min order is 3000PCS,And Delivery time is approximately 15 days.
Textile production and processing enterprises in various cities can contact Mr. Yang from our company for consultation or negotiation if they need to purchase products such as D27 Textile Bobbins, D30 weft tubes, yarn changing tubes, nylon pirn, textile equipment, plastic accessories, etc. for weaving shuttles.
