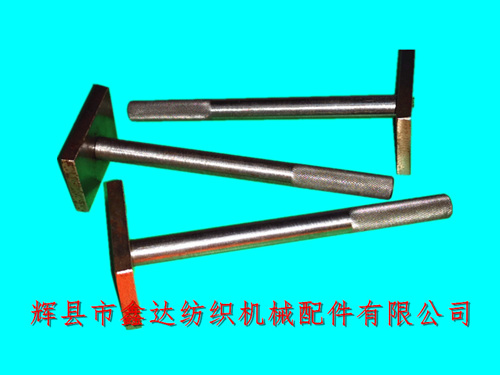

Huixian Xinda Textile accessories provides loom maintenance tools,Textile Tools Shuttle Box,Reed Setting Gauge 6-105 all year round. This textile tool is used to test the angle of the reed and shuttle box back plate of the loom. It is composed of a handle and a quadrilateral setting gauge. The handle is 13 cm long, 10mm thick and thin, the tail handle has 4 cm long reticulation, and the front part has a 6 mm long threaded pin head. The front quadrilateral gauge has two right angles on one side and a slope on the other side, with angles of 86.5° and 93.5° respectively.
The front quadrilateral of loom shuttle box and reed gauge 6-105 is in the shape of a ladder, with a thickness of 6mm, a width of 33.4mm, an upper length of 42.5mm and a lower length of 44.7mm. Textile tools and loom maintenance tools include a variety of products, which are mainly convenient for rapid installation and inspection of equipment.
Xinda Textile accessories has 20 years of experience in the sales of shuttle textile accessories, and can provide nearly 2000 kinds of products for Chinese and foreign customers. Products with special specifications support the processing and customization of samples. We have long adhered to the business philosophy of "honest management, pragmatic and enterprising" and continue to expand the sales market of textile accessories.
6-105 when checking the included angle between the shuttle box back plate (or lifting the back plate) and the shuttle box bottom plate, pay attention to meet the two contact surfaces of the tool and their full fit. 86.5 degrees is the standard angle, and too large or too small will affect the normal production of the loom; In addition, it can also be used to check the included angle between the loom reed and the shuttle board to ensure that the shuttle flight meets the normal requirements. The weight of a single set of shuttle box is about 0.18 kg, and the minimum order quantity is 1. By default, it is express delivery, and it can be sent 1-3 days after receipt.
Xinda Textile Accessories provides loom tools such as pin puller, hook puller, shuttle box gauge, reed gauge, loom gauge, maintenance tools, shuttle box gauge products. If you need to purchase loom maintenance tools, textile shuttle box, reed gauge 6-105 products, please contact Mr. Yang of our company!
