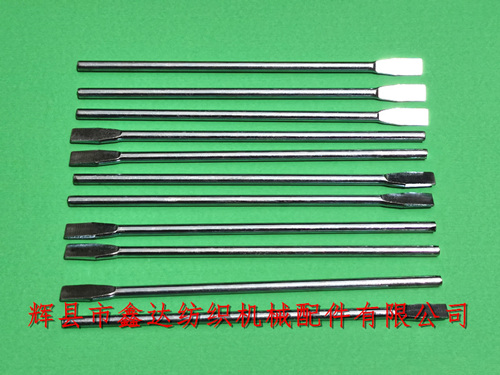

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides J27 Weft Feeler Textile Galvanized Parts, shuttle textile accessories J27 weft probe (Weft Feeler) textile Hardware parts. The total length of the J27 probe is 132mm, the diameter of the main shaft of the weft probe is 4mm, the width of the front flat position is 6mm, and the length is 19mm. J27 is made of 45 # steel, which is a textile galvanized product. It is installed on the J9 probe support seat without distinction between left and right hands. The number of each loom is 1 pcs.
The crank shaft is dead center in the front, 16-20mm from the root of the weft tube to the left and right of the probe, with the height in the middle (on the high side), and 1.6mm deep into the weft groove. Its length is (132 ± 2) mm, width is (6+1) mm, thickness is 0.8-1.2mm, and the head is smooth and rounded.
The quality requirements of J27 probe are: flat, smooth and flexible. The gap with the probe support foot J9 shall not exceed 0.3mm. J27 probe can be used in 1511, 1515, GA615 and other models of door looms. It is a general component of shuttle looms. J series accessories are the constituent elements of the induction shuttle change device of the full-automatic shuttle change loom, which is used to assist in realizing the automatic shuttle change function after weft weaving.
The package of J27 weft probe is 100 pieces per bag, with a minimum order of 20 pieces. The single weight of J27 is about 0.011 kg. 1511-J27 probe, 1515-J27 weft probe, GA615-J27 weft probe fork will cause inducement disorder and produce "empty tube" or "empty tube stop" when the shuttle is positioned incorrectly. The non-standard winding of the "safety yarn" on the weft tube will also cause induction disorders, the shuttle core convex nail is lost or the weft tube weft probe slot position is not opened correctly, causing the J27 probe to be inaccurate for weft tube weft probe slot, and also causing "empty tube parking".
The height (high or low) of the shuttle core in the loom shuttle will affect the alignment of the probe J27 with the weft probe slot, which requires strict attention during installation and inspection. If you need to purchase shuttle machine textile accessories, probes, J27, textile galvanized parts, weft probe products, please contact Mr. Yang of our company for details!
