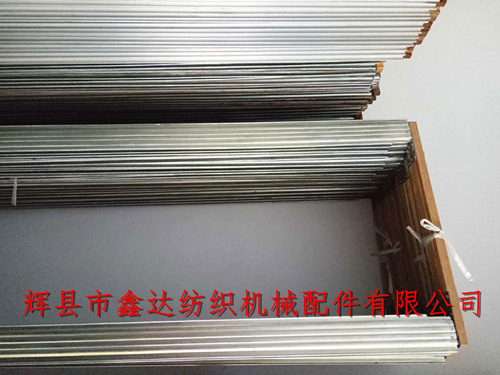

Huixian Xinda Textile Machinery Co., Ltd. has been providing various kinds of old textile dobby heald frames for a long time. Dobby Heald Frame 1515 56 Brown Frame,It is engaged in the processing and sales of the heald frames of 44 dobby dobby looms and 63 inch dobby Brown frames. The heald frames of various models and specifications of old shuttle looms are processed with iron sheet or aluminum alloy. The number of used multi arm heald frames on textile machines of 1515 type needs to be determined according to the fabric warp and weft structure.

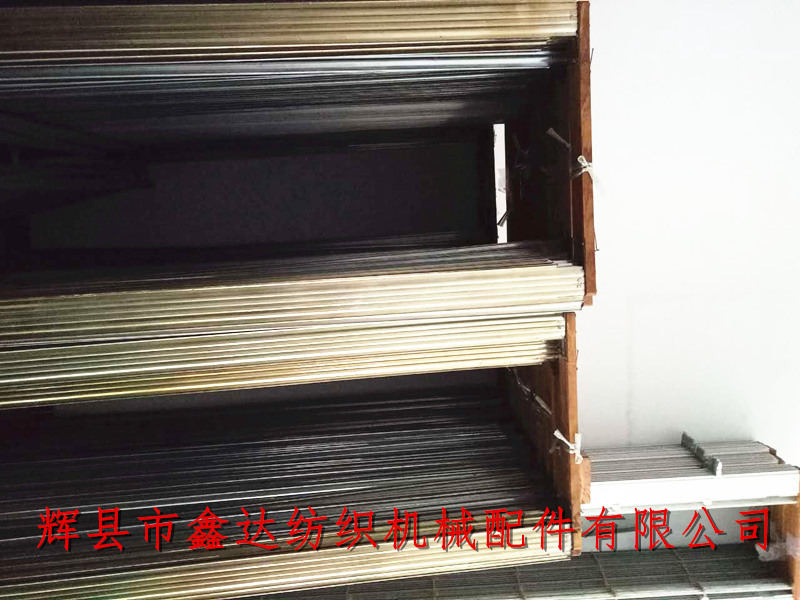

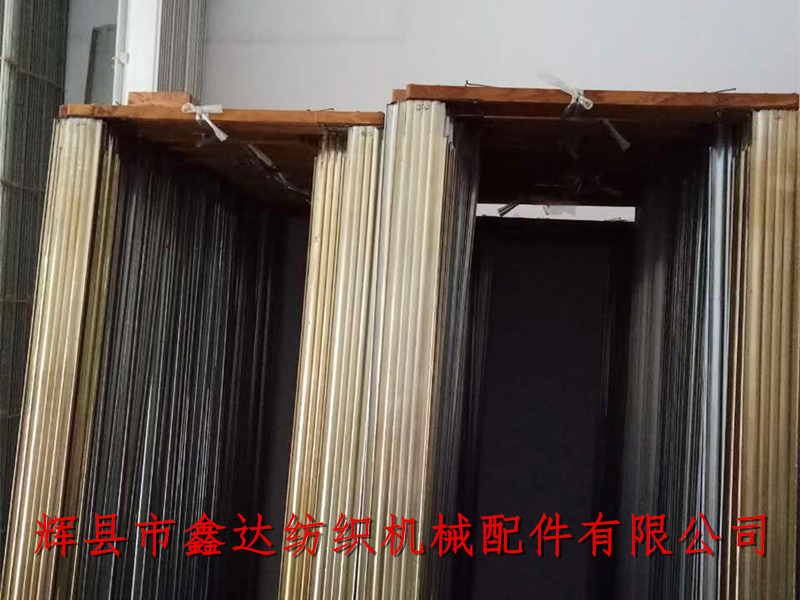

The above picture shows 1515 56 inch dobby heald frame. The accessories of GA615 textile brown frame mainly include flat tube (upper beam and lower beam of heald frame KD-2), plug (wood cross head KD-3), nylon cushion block, cross head nut, lifting heald hook, heddle rod clip, round nut, transverse spring, etc. the length of heald frame is determined by the width of loom door, and the fixing method of heald wire is divided into exposed and embedded.

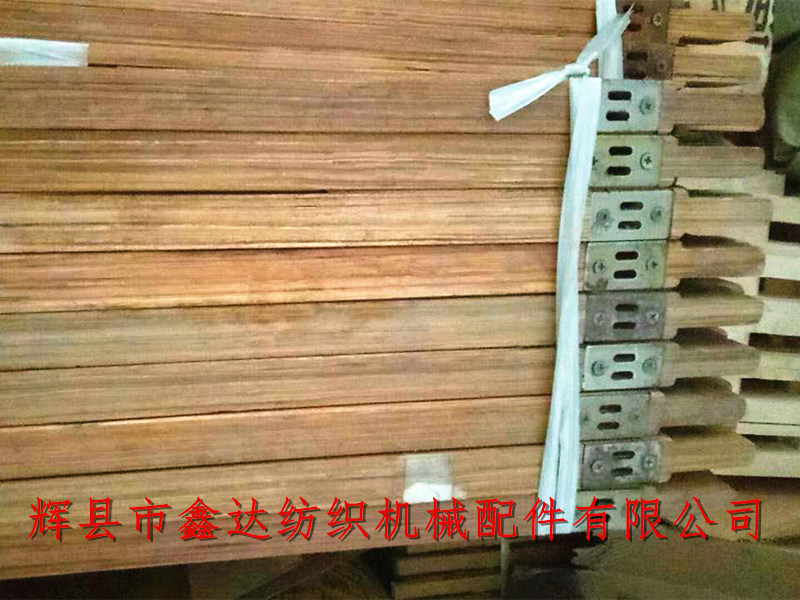

The picture above shows the wooden transverse head of double row heald strip. The heald bar is designed with two rows in parallel and exposed, and fixed by transverse head spring. The material of the cross head is laminated plate (the same as the shuttle throwing rod, shuttle striking plate and side plate).

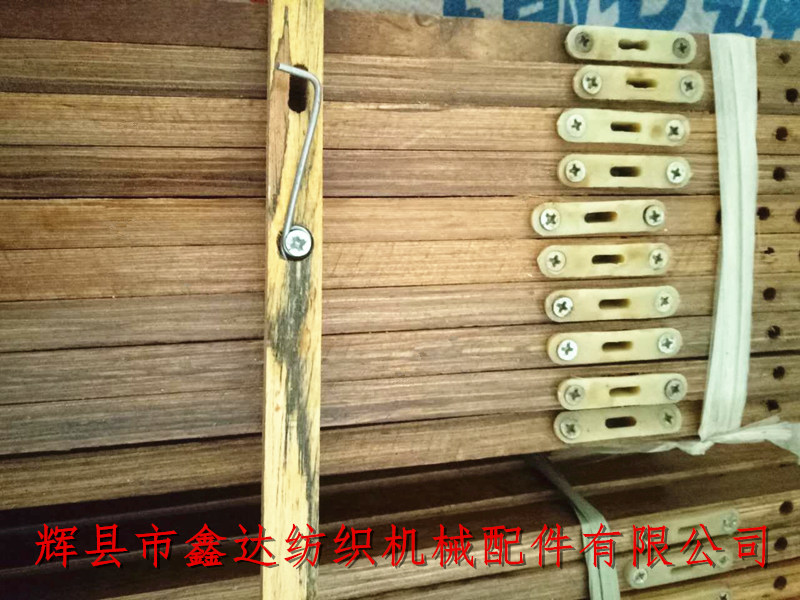

In the figure above, the left side is exposed, and the heald is fixed by a 7-shaped spring, and the right side is an embedded one. Each has its own advantages and disadvantages. The number of heald frames used in looms is generally between 4 and 16 pages. Textile dobby heald frame 1515 56 inch brown frame customization conditions are the same size 20 pieces.

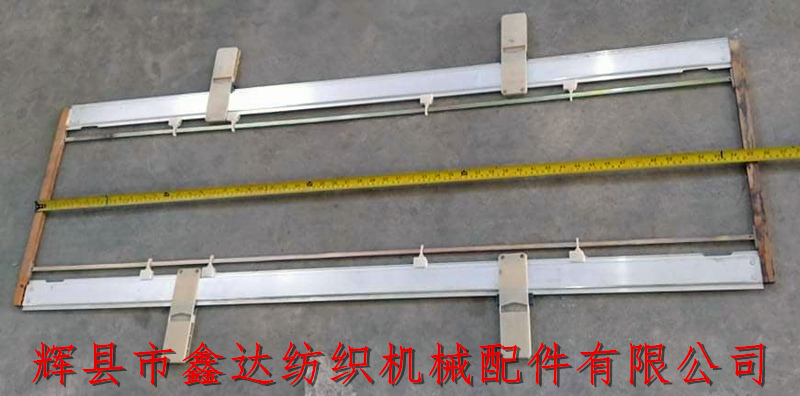

The above picture shows the heald frame of ga615-135 Zheng spinning machine, which is the same as that of GA747 rapier machine. It is made of aluminum alloy. Heddle wire clamp and heald holder are used to fix the heald screw rod.
Textile enterprises in various cities need to customize 56 multi arm heald frame, 75 inch textile heald frame and 63 inch multi arm brown frame, please contact Mr. Yang of our company for consultation!
