Huixian Xinda Textile Machinery Parts Co., Ltd. provides Toyoda loom shuttles - eccentric shuttles and automatic bobbin changing shuttles,Toyoda loom Wood Automatic Shuttle,The eccentric shuttles are used for automatic bobbin changing loom equipment,Textile Wood Parts,They have various length specifications, generally represented by a total length of 42cm. The outer width of the shuttle bottom is 46mm, and the total height is 34mm. The main body of 420 automatic bobbin changing shuttles (eccentric shuttles) is composed of two shuttle tips, one iron chuck (five slots), one set of yarn passing device and the shuttle body.

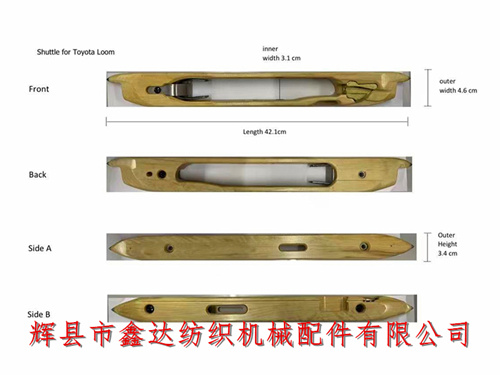

There are many kinds of automatic bobbin changing shuttles. The dowel screws of the eccentric shuttles (460 large shuttles, 430 medium shuttles, 420 small shuttles) are mainly used to fix the iron collets (the collets are usually divided into four slots and five slots). There is one weft detecting slot on both sides of the shuttle body of the Toyoda loom. See the following figure for the detailed dimensions and the shape of the four sides:
Due to the lack of supporting components for the offset shuttle, our company can only provide a combination of the shuttle shell (wooden part of the shuttle body) and the shuttle tip. Currently, there are about 500 compressed wood materials (compressed with logs) of this length, and about 1000 small shuttle tips remaining. If the quantity exceeds this, we need to use spliced compressed wood materials for production.
The above picture is a photo of the front of the Toyoda shuttle. The minimum order quantity for this type of offset shuttle is 300 pieces, packaged in cardboard boxes of 38 pieces per box, with a delivery time of 60-65 days. If you need to order such textile and wooden products as offset shuttles and automatic replacement shuttles, please contact Mr. Yang from Xinda Textile Accessories for consultation!
