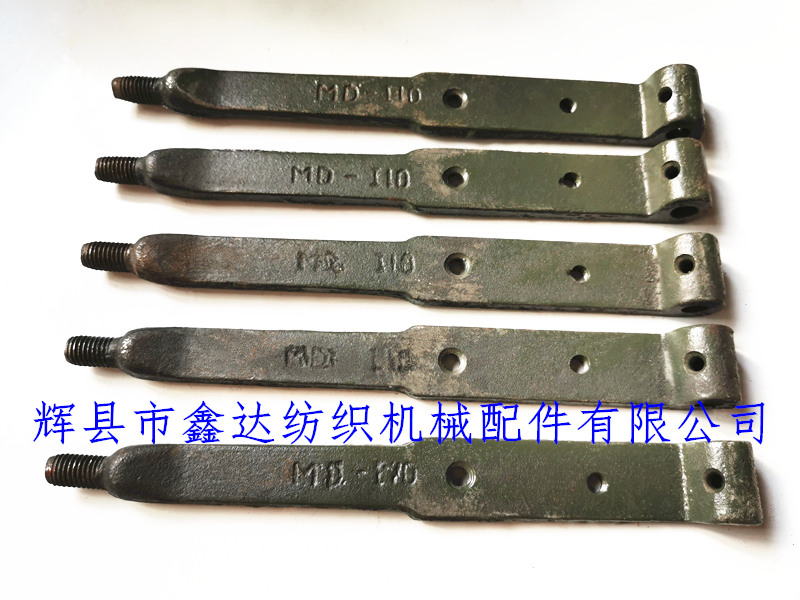

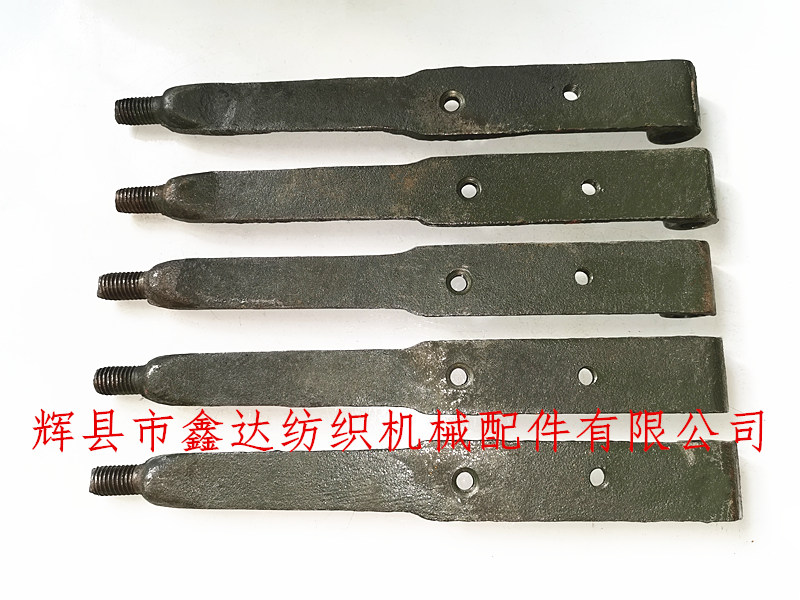

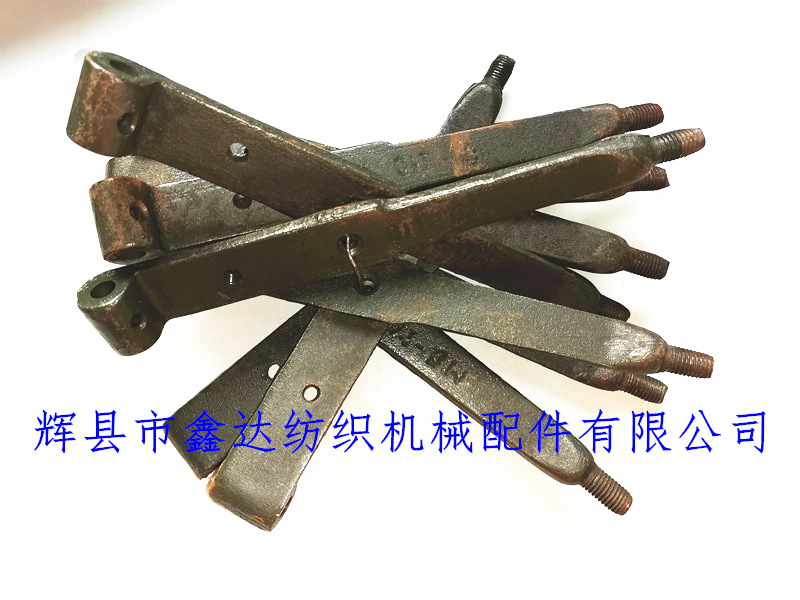

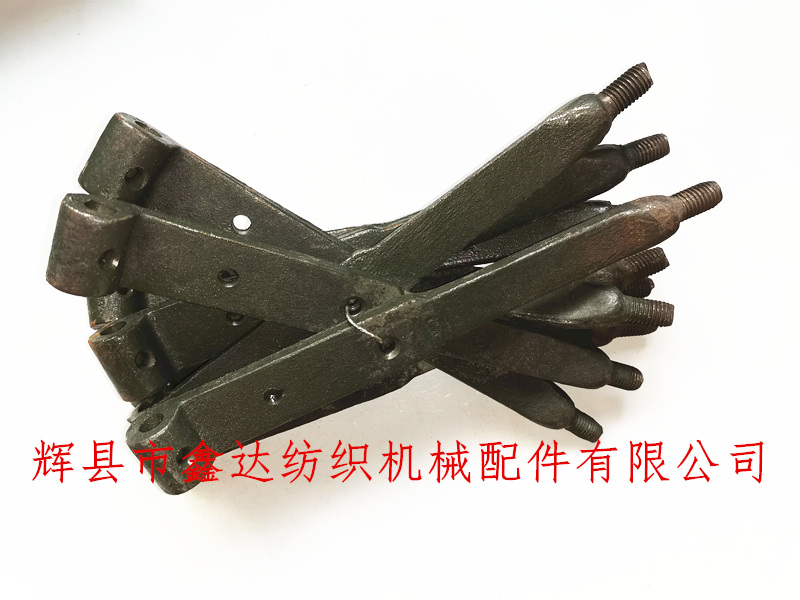

Our company provides the switch handle i10w of CHINA weaving machine. The switch handle of the weaving machine is used for the driving of 1511, 1515, G611 and other old-fashioned shuttle looms. The material is kt30-6. The i31 mandrel and I32 rotor sleeve are fixed at two screw holes. The upper screw is installed with the handle ball. The lower hole of the switch handle is passed through by i33d pin and fixed on i29.
On the new loom, the I10 handle is fixed on the F220 handle seat, while on the old loom, the i29 (with tail) base is directly fixed. The travel switch driven by the tilt bar is used for power on driving.China Loom Accessories Switch Handle I10.
China weaving machine accessories, China Textile machinery parts, China metric weaving machine components - switch handle I10 is packed in bags, 10 for each bundle, 100 for each bag.
The I10 switch handle of weaving machine belongs to the starting and braking device of weaving machine. The so-called braking device refers to cooperating with the weft breaking stop device and the warp breaking self stop component to stop and brake.
Loom switch purchase, switch handle sales, China loom wholesale price - Huixian Xinda Textile Machinery Accessories Co., Ltd., sincerely welcome your presence!
