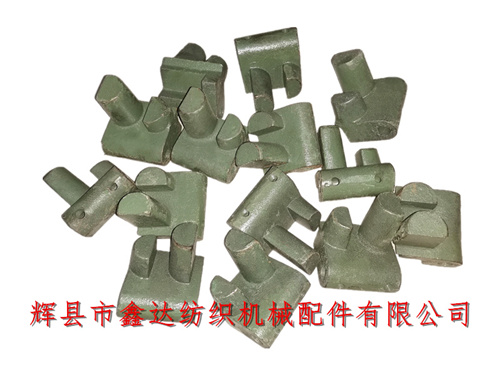

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 loom external let off accessories SJ-62 let off and kick, External Let-off Accessory SJ-62 Let-off Kick material HT15-33, color: green, SJ-62 let off and kick is divided into left hand and right hand. The usage of each 1515 loom is 1, the outer diameter of the supporting foot is 63mm, the width is 60mm, the height is 72mm, and the height of the raised high and low half cylinders are 45mm and 18mm respectively.
As shown in the lower left corner of the figure above, the front two support head screw holes are M8, the center distance of the two holes is 35mm, the inner diameter of the main hole is 12mm, and the thickness of the semicircular column head is 19mm (short column) and 2cm (high column). SJ-62 let off and kick are applied to 1515 shuttle looms with 56 inches, 75 inches, 63 inches, 100 inches (250), 110 inches (280) and rapier looms with 180cm, 200cm, 230cm, 280cm, 300cm, 330cm, 340cm, 360cm and other door widths.
The external let off device of 1515 loom was developed after the application of the internal let off device of the loom. It has the characteristics of stable let off, large adjustable space, not easy to damage and high efficiency. Therefore, some old looms began to be installed later, and the current GA74 series rapier (GA741-ga799) also adopts this kind of external let off device.
The packaging method of SJ-62 let off and kick off of 1515 loom external let off accessories is: 10 pieces/string, and the weight of a single supporting foot is 0.55kg, as shown in the above figure. When purchasing SJ-62 let off and kick off, all textile enterprises and textile manufacturers should distinguish between the left and right hands according to the arrangement direction of high and low columns, with the screw hole of the support head facing themselves, and the high column head on the left is the right hand. For the detailed parameters of other 1515 accessories, please contact Mr. Yang of Xinda Textile accessories!
