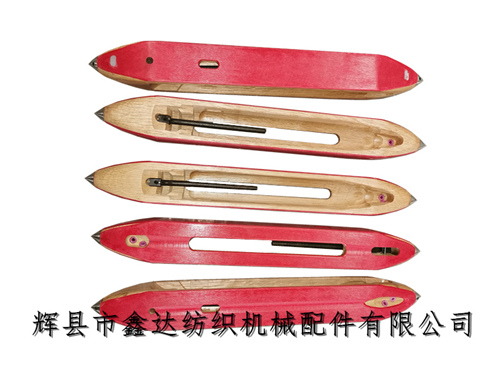

The red steel paper wooden shuttle factory customized wooden shuttle 430*51*42mm is provided by huixian city Xinda Textile Machinery Accessories Co., Ltd. Steel Paper Shuttle,Wooden Shuttle,Shuttle Customized,There are more than 100 kinds of textile equipment accessories-wooden shuttles, which are divided into weaving shuttles and ribbon shuttles. The overall dimensions of this red steel paper wooden shuttle are: the total length is 430mm, the outer width of the bottom is 51mm, the outer width of the upper part is 51mm, the height is 42mm, and the inner cavity width of the shuttle is 36.5mm
Shuttle manufacturers choose Cyclobalanopsis as the main body of the shuttle when producing this wooden shuttle, and three sides (the bottom and two sides of the shuttle) are wrapped with red steel paper. Three porcelain eyes are used to prevent weft shrinkage in the yarn introduction design, and two sides of the shuttle have one photoelectric weft detection hole.
This shuttle is divided into two heights, one is 42mm, the other is 47mm, and other overall parameters are the same. As the weft insertion carrier in the weaving process, the quality of the shuttle is also the key to the normal operation of loom equipment.
The minimum order quantity of the shuttles made by the manufacturer of red steel paper wooden shuttles for textile equipment accessories is: more than 300 shuttles of the same specification and size, with a delivery period of 60-70 days. The packing method is carton with 36 shuttles per box, and the weight of a single shuttle is 0.467 kg.
If you need to purchase or customize wooden shuttle products, please contact Mr. Yang of our company (Xinda Textile Accessories) for details. We sincerely welcome the cooperation of new and old customers at home and abroad, and always adhere to the business philosophy of "honest management, pragmatic enterprising, mutual benefit and common development" to serve our customers.
