Xinda Textile machinery accessories has long provided 72 teeth textile gear for E2 loom treadmill shaft gear of shuttle loom. Note: E2 is 72 teeth, 0204 is 76 teeth, and the treadmill shaft gear used for 1511 and 1515 looms is a general-purpose textile accessory with 72 teeth.Pedal Shaft Gear,Textile Gear,Textile Accessories,Loom Gear, Before milling, the textile gear is cast with nodular iron material ratio, and the abrasion of the upper part of the teeth shall not exceed 1.6mm. Tooth missing and broken are not allowed. The colors of 1515 textile accessories, E2 loom tread shaft gear and 1511 type 72 tooth textile gear are divided into green and red. Green is cast from pig iron and red is processed from nodular iron.

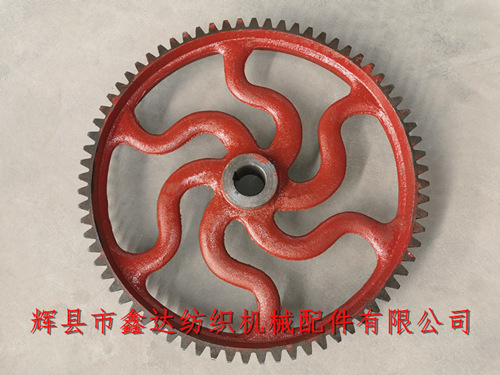

The outer diameter of the loom tread shaft gear E2 (as shown in the above figure, 72 tooth Textile Gear) is 46.8 cm, the inner hole diameter is 42 mm, the keyway width is 12 mm, the outer ring tooth width is 4.93 cm, and the keyway depth is 3.5 mm on the outside and 2 mm on the inside. This is due to the slope shape of the E8 hook head key used to fix the gear.
The weight of a single textile gear accessory E2 is 13.65KG, the height of the middle round table is 73.5mm, and the outer diameter of the round table is 79mm. One is used for each loom. The tread plate shaft gear is an important part of the shuttle throwing device of the loom. The quality of the loom gear directly affects the shuttle throwing effect and service life. Many E2 gears made of pig iron have been damaged before they are installed on the weaving machinery and equipment, while the textile gear made of nodular iron has good wear resistance and ductility, which greatly prolongs the service life of the gear itself.
During the production and processing of textile machine gears, the use of milling teeth (modulus 6.32) can ensure their good cooperation with D7 or 3210 curved shaft gears, and the bite depth and contact area of teeth can be improved to a certain extent. Modulus = outer diameter of gear ÷ (number of teeth + 2) = 467.4 ÷ (72 + 2) ≈ 6.32. There are different versions of E2 loom gear for textile accessories. The width of metric keyway is 12mm and that of British keyway is 10mm.
If you want to know the parameters of 72 tooth textile machine gear and the detailed photos of tread shaft gear E2, please contact our company for details. There are many kinds of textile machine frosting casting gear, 72 tooth precision milling gear, textile machine accessories gear and loom gear. We welcome all textile enterprises to provide samples or drawings for customized purchase.
