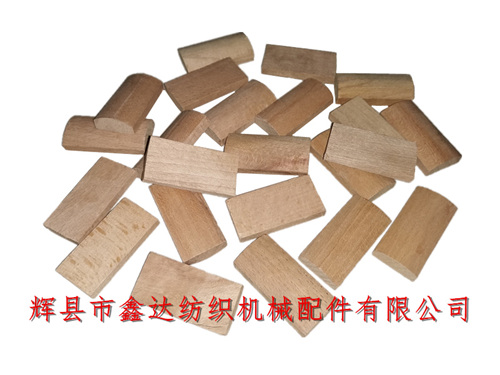

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 3227 positioning wood For Reed Cap of Loom. Shuttle Loom Parts,Positioning Wood, Reed Cap,Wood Part,Textile Wooden Parts, The reed cap cushion block of 1515 loom is rectangular in appearance, arc on the upper plane, and made of "wood". One is used on each reed cap. 1515 is connected with 3224 reed cap, and GA615 loom is connected with 3119 or 3121. The reed cap of loom is divided into left mobile phone and right mobile phone. 3227 positioning wood mainly plays the role of fixed support and positioning.
3227 reed cap positioning wood has a length of 49.5mm, a width of 24.5mm, a middle height of 10.3mm and a height of 6.7mm on both sides. It belongs to the components of 3100-6 (GA615) and 3200-1 (1515) reed caps and is installed behind the right side of the loom reed cap.
During the installation of the 3227 positioning wood of the textile wood part in the above figure, it is necessary to check whether its surface is cracked and complete. If the vertical and horizontal cross crack or one-way crack at the head end of the reed cap of the loom exceeds 1/2, and its depth is inserted with a 0.2mm feeler gauge for more than 25mm, it is bad.
The package of textile equipment accessories - positioning wood 3227 is 100 pieces / bag, and the minimum order quantity is 100 pieces. The warp protection device of ga615b-180 towel loom is a reed type warp protection device, which is basically the same as that of 1515 automatic shuttle changing loom. Its reed clip spring structure is exactly the same as that of 1515k and ga615k looms.
If textile mills, weaving mills and cotton mills need to purchase 3227 positioning wood and 1515 loom reed cap cushion block, please contact Mr. Yang of our company for details. Positioning Wood, Reed Cap,Wood Part,Textile Wooden Parts, There are a variety of textile wood accessories, including shuttle loom wood parts (reed cap, back plate, beating rod, side plate, nail wood, reed frame wood, reed bed, etc.), and there are a variety of specifications and types of different materials. Welcome to buy!
