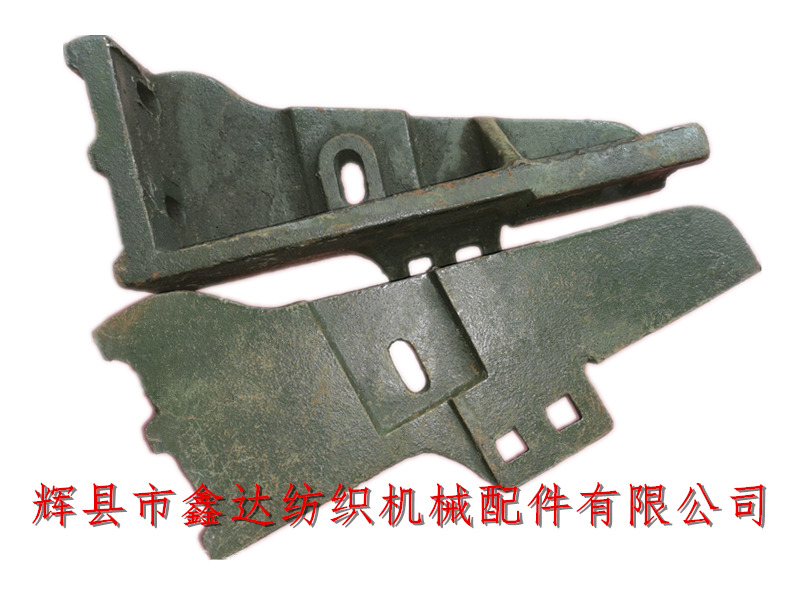

Huixian Xinda Textile machinery accessories provide ga615-135 full-automatic loom crank side bracket F41, which is connected and assembled with crank shaft support (F40), which is used to support the shaft head of bending shaft and fixed on the wall panel on the same side with motor base. The total length of loom support F41 is 28cm, width is 12cm, thickness is 6.5cm, material is gray iron, due to different processing molds, its weight is also There is a difference. The weight of crankshaft bracket in the figure below is 4kg / piece.

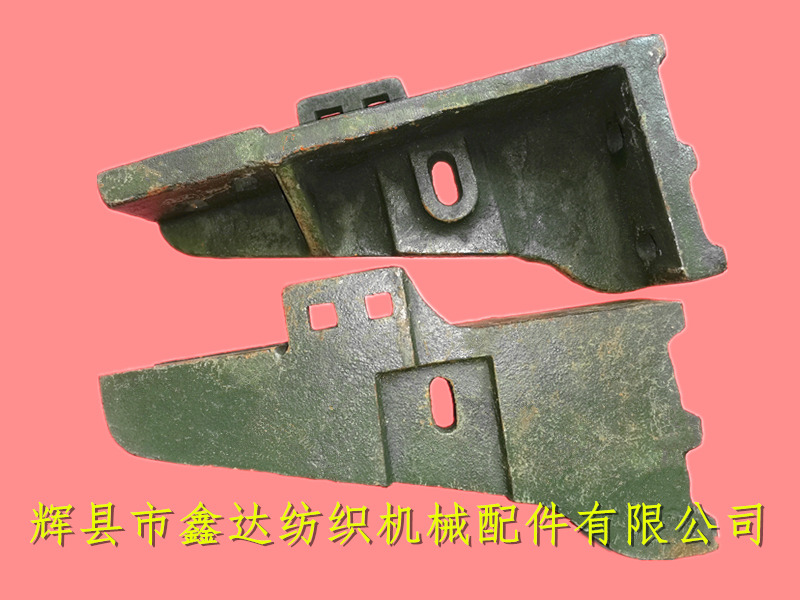

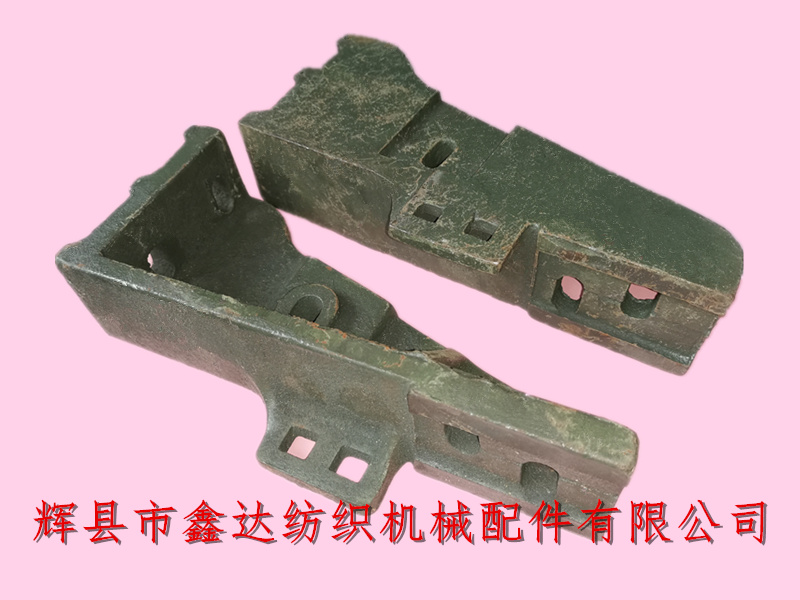

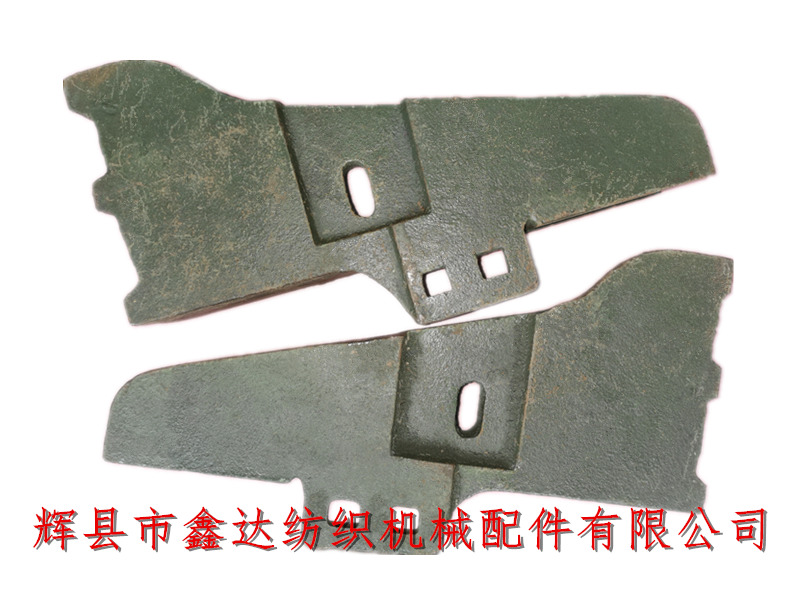

The F41 bending shaft side bracket in the above figure is suitable for 1511, 1515, ga611, GA615 looms with different door width specifications. The straight-line span of the crank shaft support F40 is 447 mm, and the high-low hole position on the side is used to connect and install F40. The F41 of bending axle side bracket is divided into left and right hands. The figure above shows right hand and left hand in turn. Each loom uses one F41.
The F41 used by GA615 loom is fixed on the wall panel 4302 and installed horizontally. Ga615-135 portal loom refers to the weaving width of the machine is 135 cm (i.e. 1.35 m, called 56 inches).
About the outline dimensions of GA615 weaving machine:
Width: 2692mm (1350 loom = 56 inches), 2866mm (1500 looms = 63 inches), 2968mm (1600 looms = 67 inches), 3171mm (1800 looms = 75 inches)
Depth: 1656MM
Height: 1540 mm (plain), 2250 mm (dobby)
If you want to buy 75 loom accessories, loom bracket, crankshaft bracket, 135 automatic loom crank side bracket F41 and other products, please contact our company Mr. Yang, welcome!
