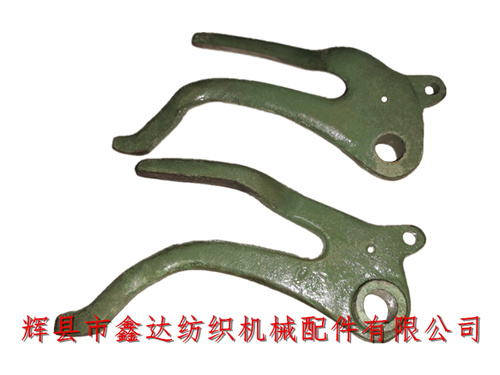

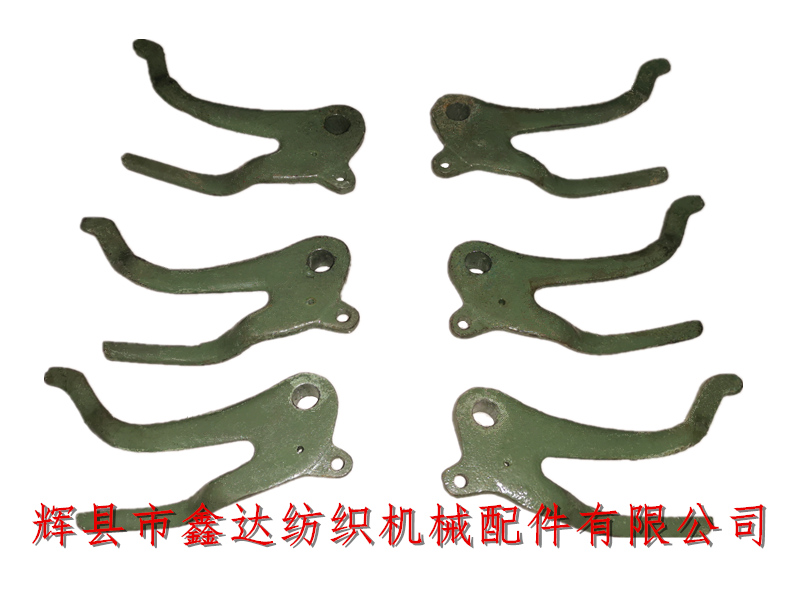

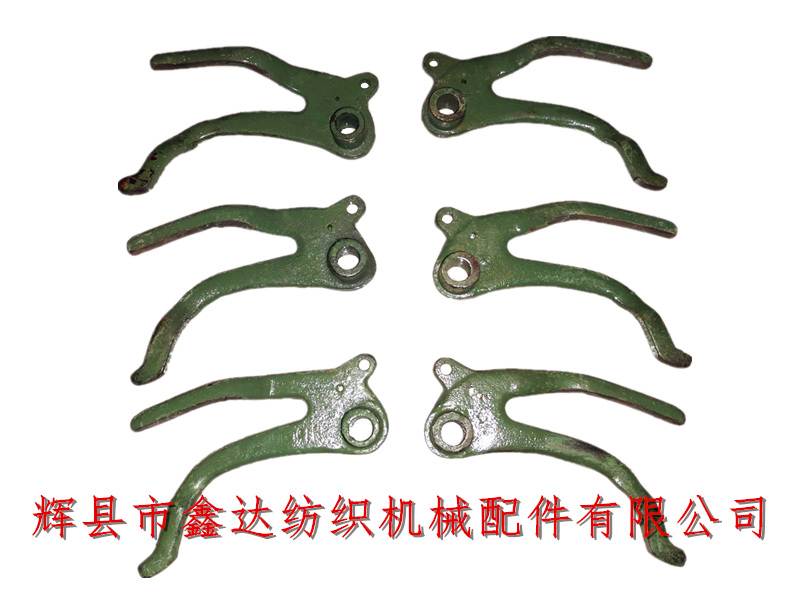

Our company provides Weaving Machine Spare J16 Limiting Rod. The product is applicable to 1511 loom. The total length of the control rod is 137mm, the width is 5cm, the diameter of the large hole (fixed J20) is 12mm, the diameter of the middle hole (fixed J35 core) is 6mm, and the diameter of the small hole (fixed J34 spring) is 3mm. J16 control rod is divided into left hand and right hand. The material is gray iron HT15-33. The weight of a single loom accessory - j16 control rod is 0.16 kg.

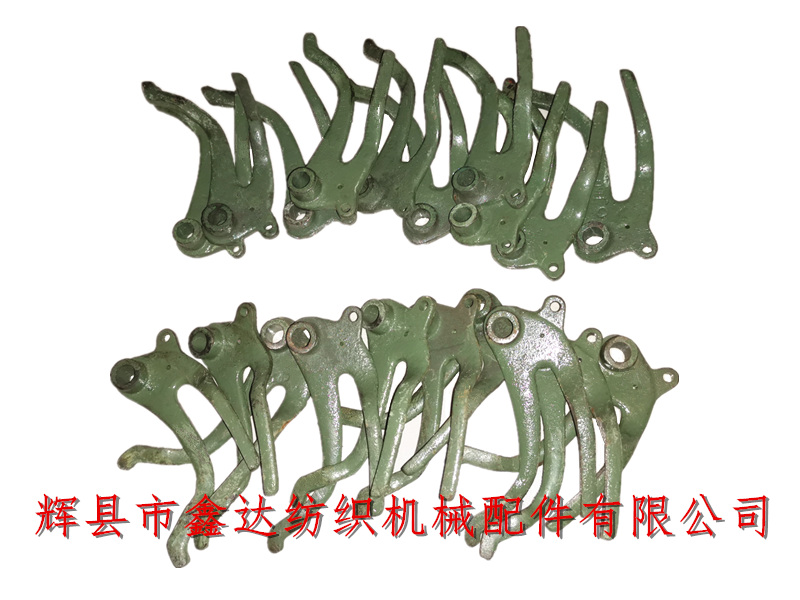

Textile accessories J16D control rod is connected with J20 (control rod screw core) and J11 (probe foot). Each loom is equipped with a set of probe support foot J11, control rod J16 and support fork steel wire J38. Adjust the in and out position of steel wire J39 in the control rod connecting core J37 so that the switch is in the start-up position, and one end of the steel wire is 1.6mm lower than the weft fork. Turn the bending shaft to make the large radius of the weft cam upward, check the flexibility of the sliding hoop when returning, otherwise correct the steel wire.
Install a set of sleeve support leg J4, sleeve support J21 and cross spindle sleeve J13, align the end of the sleeve support head with the sensing rod J5, install the weft probe support J9 on the probe support leg J11, and align the probe J27 with the center of the coil probe slot or slightly higher. The position of the probe should be 16-22mm away from the bottom of the inner winding tube of the shuttle.

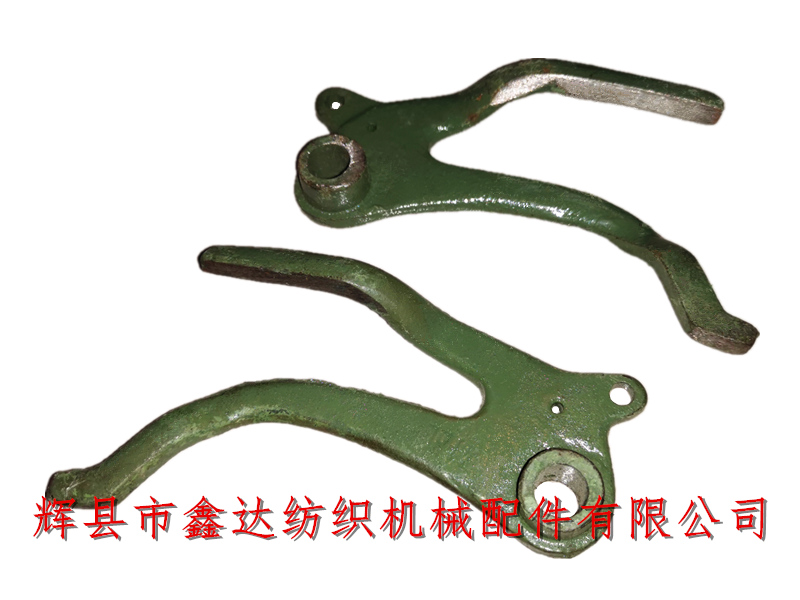

The figure above shows the back of J16 control rod of China loom accessories. When the shuttle is on the switch side, the bending shaft is lower than the front center, the large radius of the weft cam is forward, and the chest beam is 152-159mm away from the reed, the hook end of the cross spindle hook J28 engages with the cross spindle J22, and the gap does not exceed 0.2mm.
Correct the contact between the bell shaped curved arm J23 and the auxiliary connecting rod J24 so that the front and rear of the probe are not loose. Weaving Machine Spare J16 Limiting Rod,When the bending shaft is dead in the front, the probe will probe into the winding pipe groove for 1.6mm. If it is too deep or too shallow, the position of the auxiliary connecting rod J24 can be adjusted, and then push the switch handle to the driving position. Correct the distance between the control core J25 at the tail of the probe and the control rod J16 by 2mm. The spacing is too large, resulting in unnecessary shuttle change due to the lack of time to pull back the control core when driving at slow speed.
