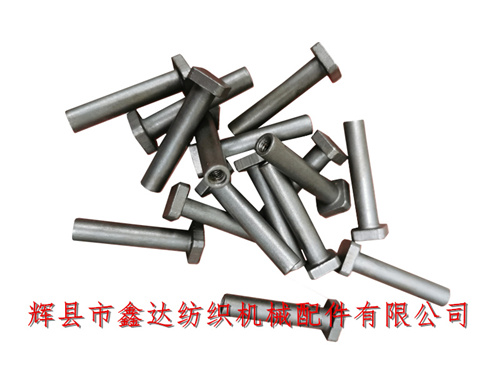

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Stainless Steel Mesh Loom Square Pin Screw;stainless steel weaving machine shuttle hardware components with 8X8 square head pin screws all year round. The pin screws are mainly used for fixing the shuttle core of the pliers shuttle, with a bottom of 8mm x 8mm square and a thickness of 2.4mm; The total length of the main body of the pin screw is 27.4mm, and the length of the smooth shaft body is 25mm. The front inner hole has threads and is fixed to the pin with a slotted round head screw. When using the screw, it needs to be inserted into the circular hole of the cracked shuttle core.
In the above figure, there are threads inside the pin screws, which form a dual part with M3 flat head screws. The outer diameter of the main optical axis is 5mm, and this type of hardware component is widely used in textile hardware products.Square Pin Screws,Stainless Steel Mesh Loom,Textile Hardware Parts.
The hook hook usually uses pin screws to fix the hook core and hook hook. Compared to the embedded method used in stainless steel weaving machines, the conventional pin screws are designed in the form of nuts and screws.
Textile hardware components - The packaging of the matching screws is in transparent bags, with a minimum order quantity of 1000 pieces per bag. The delivery time is approximately 15-20 days. Our company not only provides 8X8 square head matching screws for stainless steel mesh weaving machine shuttle hardware components, but also supports the customization of stainless steel mesh weaving machine wooden shuttles, with a minimum order quantity of 300 pieces and a delivery time of 60 days. Welcome all stainless steel mesh production enterprises to consult and negotiate!
