Huixian Xinda Textile machinery accessories have provided various textile gears (milling spur gear) L13 and bridge gear L10 for shuttle looms for a long time. The number of teeth of loom pricking roller gear L13 is 96 teeth, the diameter of inner hole is 25mm, and the teeth of g263-51101 can not be missing. The diameter pitch of L10 and L13 is 10, the broken tooth of textile gear is less than 1 / 3, the tooth wear of spur gear is less than 1 / 3 height or two adjacent cracks Can not be used, the bridge gear L10 is 89 teeth, connected with L11 and l00-5.

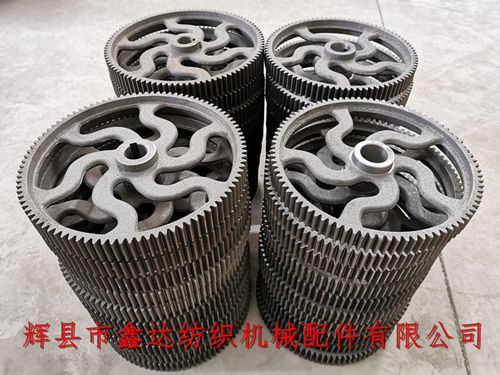

On the left side of the above figure is the Undercrossing gear L10. There is no keyway in the inner hole. The L11 (cross bridge pinion) is fixed by the side M8 screw. The diameter of the inner hole is 30mm, and the material is HT gray iron 15-33. On the right side of the figure, the burring roller gear L13 has a keyway, which is fixed on the shaft head of the burring roller with a flat key during installation.
The traditional old shuttle looms mainly use spur gears, bevel gears, worm gears and helical gears (also known as saw gears). The width of the keyway of L13 is 6mm. L10 and L13 belong to the take-up parts of the loom, and pull the bridge gear L10 by hand, If the take-up gear train does not advance with the loom running, or if the take-up gear train is turned by hand, the cloth surface cannot be rolled into the cloth roller, which is called coiling failure.
The coiling failure is caused by three reasons. First, the dynamic range of the coiling hook L5 is small, and there is no serration on the saw tooth wheel L7 that should be hooked; second, although the hook is hooked, it is unhooked midway due to various reasons; third, although the gear train is advancing, it still can't draw the cloth surface into the cloth roller.
If you want to purchase shuttle textile gear, textile straight gear, textile bridge wheel, loom taker in roller gear and other products, please contact Mr. Yang of our company for details. We have been engaged in textile accessories industry for 20 years and sold online for 13 years. Our production technology and product quality are reliable. We provide satisfactory textile accessories products for domestic and foreign customers all year round.
