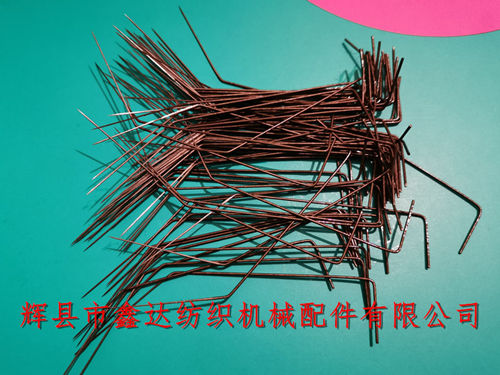

Xinda Textile Accessories Co., Ltd. provides chicken needles for 7218 chicken rice pecking device of textile needles.Textile Needle 7218 Broken Weft Stop Parts, The tail is bent at right angles and fixed on 7215 chicken head support block. It is fixed by 7216 needle pressing rod. Chicken needle, also known as probe, is mainly used to detect weft. It is processed by spring steel wire II and Piano steel wire (diameter 1-1.2mm). It is a textile needle equipment accessory and widely used in textile equipment.
The straight handle at the bottom of the figure above is used for fixing. The length of the vertical position is 6.5cm, and the length of the upper bend (tapering gradually) is 30mm. The textile probe (chicken needle) has various specifications of thickness. 0.8mm, 1.0mm, 1.2mm, etc. are distinguished according to the wire diameter of the steel needle tail handle.Textile needle, 7218, weft break stop.
Textile chicken needle can be used in 1511, G611, 1515k and other types of shuttle looms with high sensitivity. The bending angle of the front end of the probe will directly affect the weft pulling and stopping function during use. Textile equipment chicken needle accessories can be used with different length of outer sleeve.
When the weft insertion of the loom is completed, when the probe follows the 7215 support and shakes, if there is weft blocking the needle tip, the stop function will not be triggered. If there is no weft detected by the chicken needle, the machine will stop.
The package of chicken needles is as shown in the figure above, with 100 in each bag. If you need to buy textile needle, chicken needle, chicken pecking rice device parts, please contact our company, we are dedicated to provide our customers with reliable quality textile equipment products.
