Huixian Xinda Textile Machinery Accessories Co., Ltd. sells 44 inch/56 inch single beam weaving machine accessories I1 motor frame motor base. Single Beam Loom I1 Motor Frame Motor Seat,The 44 inch weaving machine motor base, 1511 motor frame, and single beam 56 inch motor base I1 are fixed motors for the weaving machine. The external parameters are: total length is 35 centimeters, width is 35 centimeters, thickness is 20 centimeters, and the plane with four grooves is the four feet of the fixed motor.

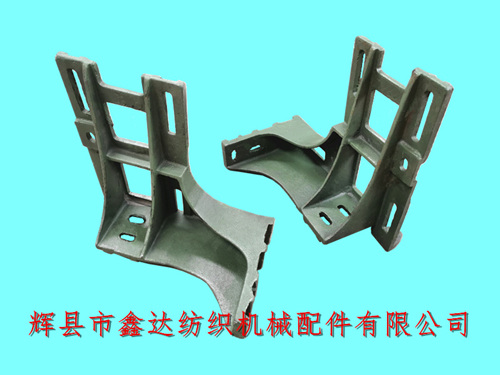

The I1 motor bracket is divided into left and right hands. The above picture shows a pair of motor bases. The length of the four slots on the right motor base is 32 centimeters. The screw hole in the lower left corner is used to adjust the front and rear positions of the motor, and to tighten the triangular belt of the motor wheel and belt pulley.
The side of the motor frame of the weaving machine has three fixing holes, which are installed on the wall panel P2 of the weaving machine (see the bottom right corner of the picture). The width of the upper right corner of the picture is 192mm, and the position with two fixing holes is for installing the F40 bending shaft bracket.
The material of the I1 motor base is gray pig iron HT15-32, and the color is green. The left side of the picture is used for the left-hand weaving machine, and the right side is used for the right-hand mobile phone. If you need to purchase 44 inch/56 inch single beam weaving machine accessories I1 motor frame motor base, please contact Mr. Yang from Xinda Textile Machinery Accessories.
