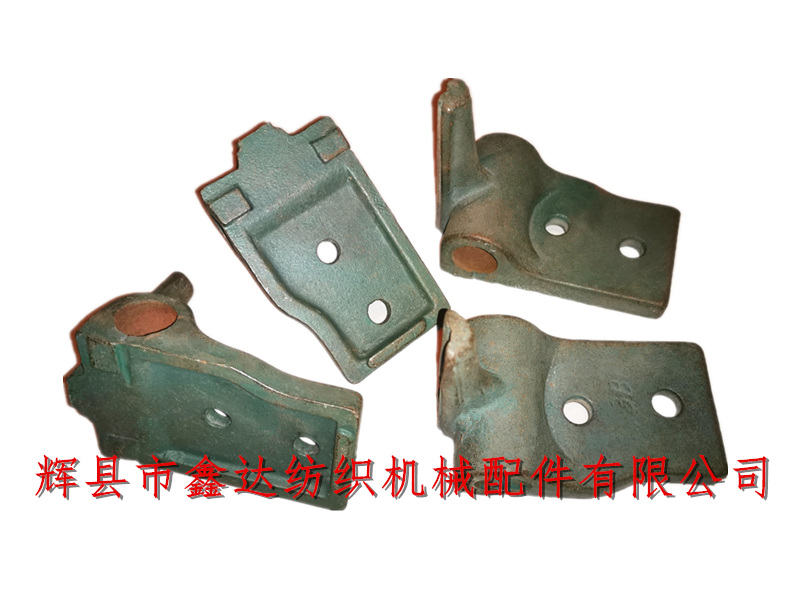

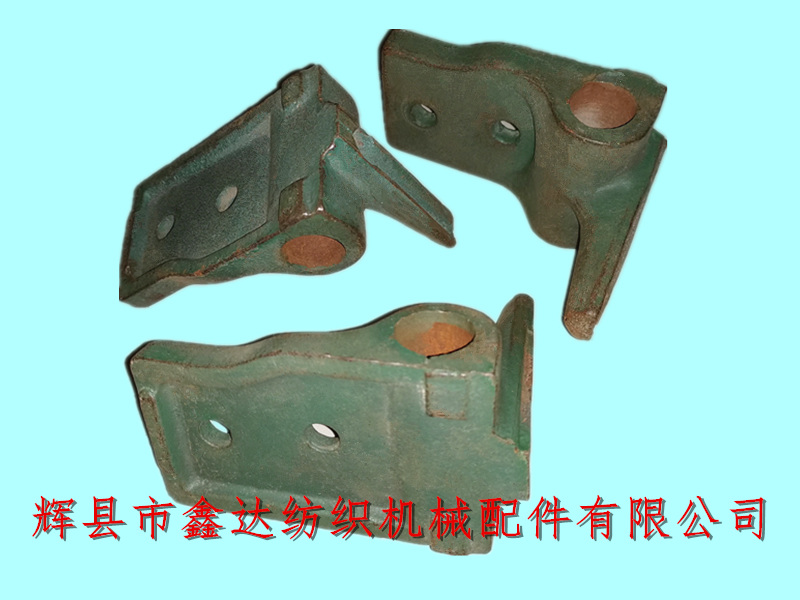

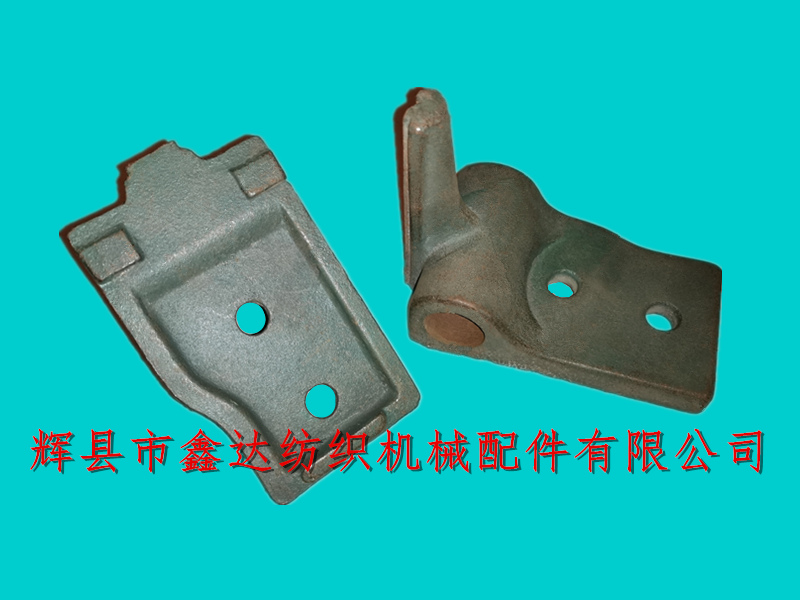

K3 textile accessories, The sley clamp shaft support foot of loom is mainly used for various door width looms of models 1511 and 1515. G1515-3108 is used for GA615. The upper part of the textile support foot is provided with a long oil groove, the overall length is 13.1cm, the width is 76mm, the height is 95mm, the diameter of the side shaft hole is 25mm, and the material is ht15-32. The textile accessories K3 is installed on the sley foot of loom K1 or 3244, and the gap between the sley clamp shaft sleeve K5 and the sley clamp shaft sleeve is less than 0.5mm.

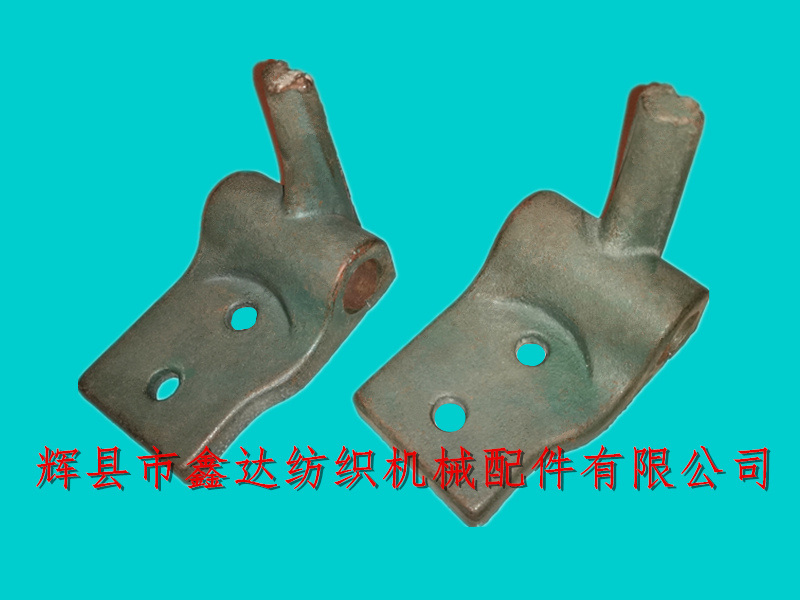

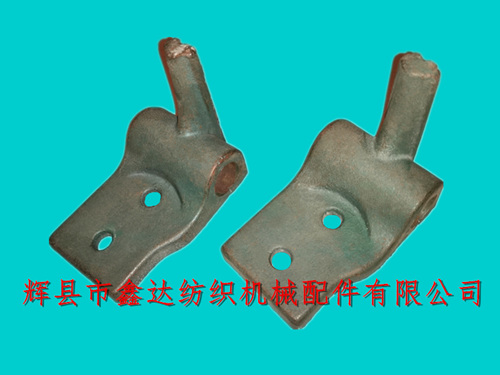

The front view of K3 textile accessories and loom reed clamp shaft support feet is as above. The two circular holes are used to fix on the reed base feet. The side holes are installed with K5 sleeves to fix one end of the reed clamp shaft.Reed Clamping Pin Of K3 Textile Machine.
K3 textile accessories are divided into left-hand and right-hand cars. Each loom uses one piece, which is installed on the switch side of the loom. The automatic loom, automatic shuttle changing loom and manual shuttle changing loom can be used.
If you want to buy shuttle textile accessories, loom reed clamp shaft 3219, K34, textile foot K3 and other accessories, you can contact our company! Each string has 5 pieces, and the weight of single reed clamp shaft bracket K3 is 0.93kg.Textile accessories, reed clamp shaft, textile support foot.
The length of reed clamp shaft used in 1350mm (56 inch) loom is 1646mm, the length of reed clamp shaft used in 1800mm (75 inch) loom is 2124mm, and K3 accessories used in old shuttle loom are not limited by door width.
