Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 3308 textile machine parts.3308 Thrash Plate M.S Shuttle Loom Parts, The loom shuttle box bottom plate (shuttle warehouse side). The total length of 1515 shuttle box bottom plate-3308 is 60cm, the width is 81mm, the outer thickness is 13.5mm, and the inner thickness is 10.5mm. The surface of loom accessories shuttle box bottom plate is in a slope shape, and the included angle of 86.5 ° is formed by lifting the back plate 3312 * Q7 (1515 type) or 2106 * Q7 (GA615 type).
Textile machine part - 3308 shuttle box bottom plate is made of ht15-32 pig iron. Each loom uses one. Thrash Plate,Shuttle Loom Parts,Textile Machine Parts,The weight of a single shuttle box bottom plate is 2kg. According to the loom, it can be divided into left hand L and right hand R. they are installed on the shuttle magazine side of the loom to assist in automatic shuttle change.
The shuttle box bottom plate 3308c is installed on the upper plane of 3222 reed frame wood (Dragon) shuttle shed on 1515 loom and on the upper plane of ga615-3106 dragon on GA615 loom,Their installation requirements and specifications are the same as those of the shuttle box bottom plate 3307 on the switch side: the included angle with the reed foot is 86.5 °, and the upper clearance is ± 0.2mm (check with a fixed gauge, mainly on the shuttle changing side). The rear end of the inner side is 27mm away from the edge of the reed frame wood dragon and is closely connected with the reed frame wood (it is better if the 0.1mm feeler gauge cannot be inserted).
The wood screws on the bottom plate of the shuttle box shall be 0.8mm lower than the surface of the bottom plate. The quick opening and acute angle shall be removed from both sides of the middle rod striking chute and the countersunk head of the screw hole, and polished smooth with sandpaper to prevent the bottom of the shuttle in the shuttle box from being worn and causing damage to the accessories of the shuttle box.

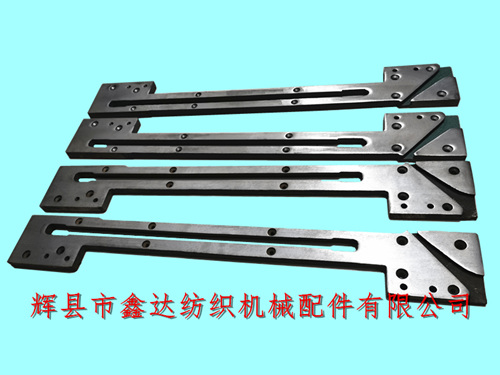

The above figure is the front view of the shuttle box bottom plate 3308. The width of the middle rod striking chute is 12.5mm and the length is 43.5cm. The 11 circular conical holes on the surface are countersunk wood screws for installing m6x50, and the other four holes are fixed with hexagon bolts. If you need to purchase shuttle textile machine parts, shuttle box bottom plate, 1515 loom accessories, textile machine parts and other products, please contact manager Yang of our company.
