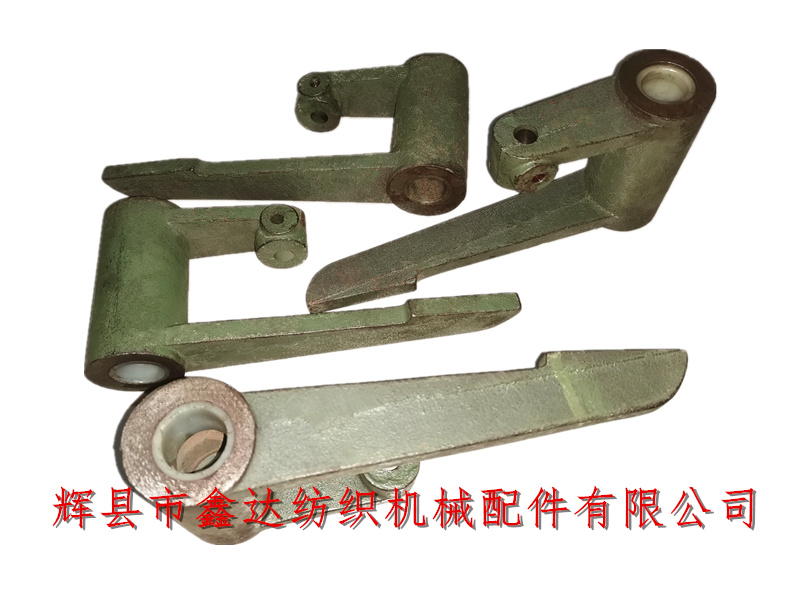

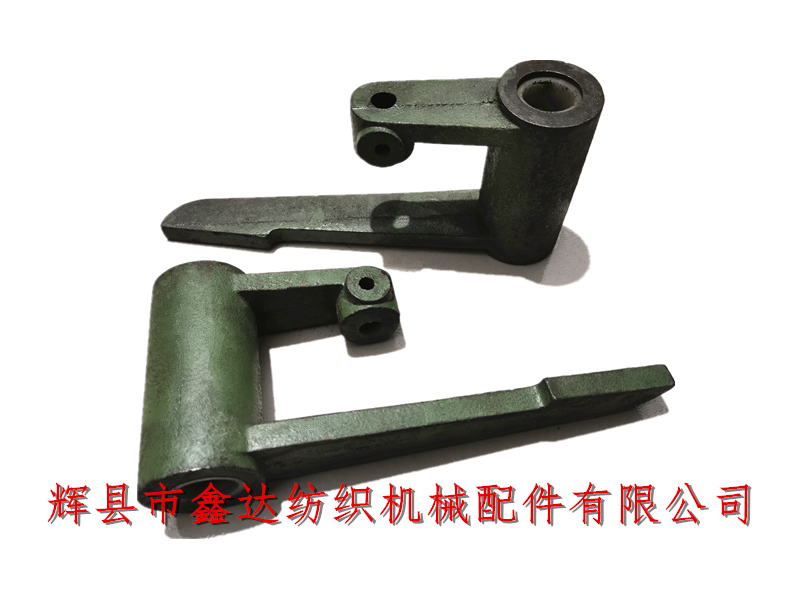

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides domestic 75" Loom Parts External Let-off Parts SJ-49, 75 inch external let off accessories, 1515 SJ-49 let off and kick. 75" External Let-off Parts SJ-49 Let Off Kick, The external let off accessories are the constituent elements of the external let off of the loom. Each loom uses a set of external let off device, SJ-49, also referred to as SJ49. Its material is pig iron HT15-32. The overall dimensions and parameters: the length of the long foot is 23.7 cm; The length of the short leg is 11.9 cm, the inner hole is 12 mm, and the side fastening screw hole is M8; The diameter of the inner hole of the kick body is 24 mm (the inner diameter of the nylon bushing), and the diameter of the casting body is 30.5 mm.

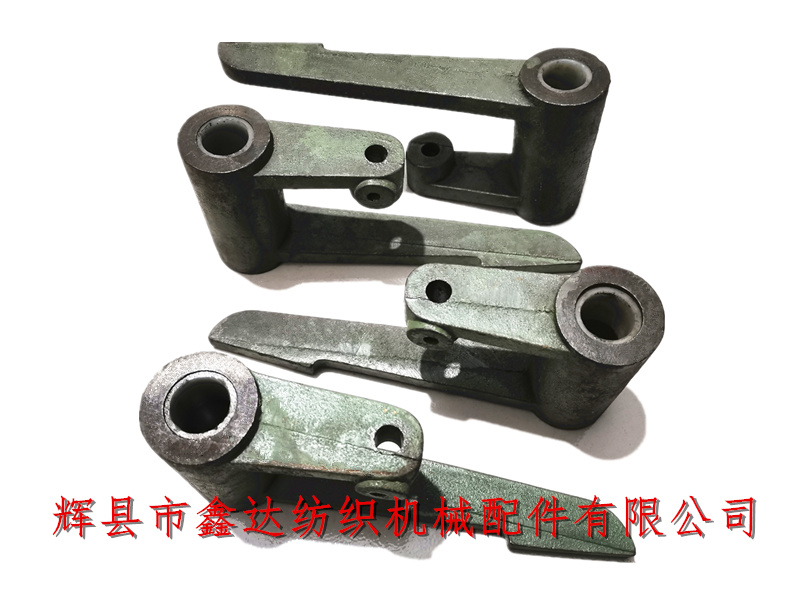

The external let off accessories of model 1515 loom include more than 80 products. SJ-49 let off kick is an important part of external let off. The cylindrical kick body has an outer diameter of 5cm and a length of 10cm. Two identical nylon sleeves are embedded inside, and there is a refueling hole in the middle behind the main body (the upper part during installation).

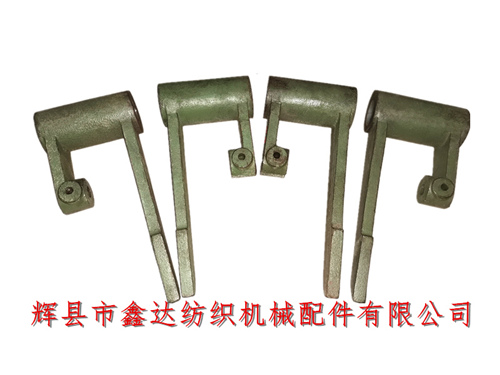

The packaging method of 75 inch loom accessories (SJ-49 external let off accessories) let off and kick is: 10 pieces (5 pairs) per string. The products are divided into left hand and right hand, and the single weight is 1.55 kg. SJ01 tension spring screw, SJ02 tension spring, SJ03 tension spring sleeve, SJ04 let off stub shaft, SJ05 tension shaft bracket, SJ06 locating ring, SJ07 tension frame, sj08 tension sheet core, SJ09 tension disc, SJ10 tension control spring, SJ11 vertical shaft, SJ12 worm shaft sleeve, SJ13 worm, SJ14 worm bracket, SJ15 spring washer, Sj16 vertical shaft compression spring and other products are common with GA747 series rapier looms.
SJ49 let off and kick off is applicable to shuttle looms of various models and specifications. For factories using shuttle looms (weaving mills, cotton mills and spinning mills), if you need to purchase outside let off accessories 1515 SJ-49 let off and kick off products, please contact manager Yang of Xinda Textile accessories for details!
