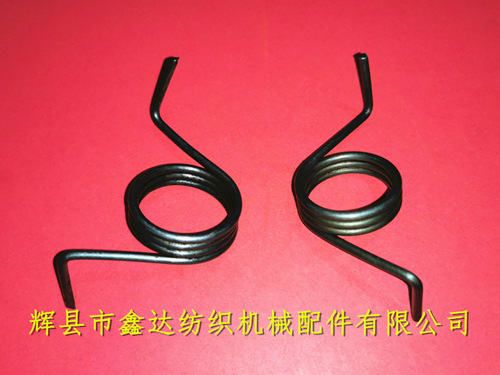

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long supplied hardware accessories for the front snap guard spring K58/K59 of 1511 textile spring loom,Shuttle Loom Spring, The front brake rail spring, also known as the front brake rail torsion spring, is processed with spring steel wire II with a diameter of 2.5mm and wound for 4 turns in total. The two ends of the loom spring are bent at right angles, the distance between right angle handles is 58mm, the bending length is 21mm, and the inner hole diameter of the spring body is 24mm, which is installed at both ends of 1511 front brake rail.
K58X front brake rail spring and k59x front brake rail spring form the left and right hands, which are fixed on the outer supporting feet of K61 front brake rail and K201 shuttle box cover plate respectively. The quantity of each weaving machine is 1.
Torsion springs are common in textile springs, which are mainly used for the deviation and reset of dual parts. The front brake rail K13 rotates sluggishly or the pressure of springs K58 and K59 is too small, which will cause the lifting back plate Q6 to recover slowly after changing the shuttle.
The early design of the inner side support foot of the front brake rail of the loom was K60, which was similar to the outer support foot of K61. After modification, the 1511 and 1515 models used K201, while the GA615 was replaced by 2101 and 2102 components. The external diameter of the K58/K59 front brake rail torsion spring is 28mm. The distinction between left and right hands is based on the winding direction of the spring steel wire. It is packed in transparent bags, 50 for each package, with a minimum order of 10.
If textile manufacturers need to purchase textile springs, loom front brake rail springs K58/K59(Textile Front Snap Guard Spring), textile hardware accessories, and other loom spring products, please contact Mr. Yang of Xinda Textile machinery accessories company, and we will try our best to provide you with satisfactory products and services.
