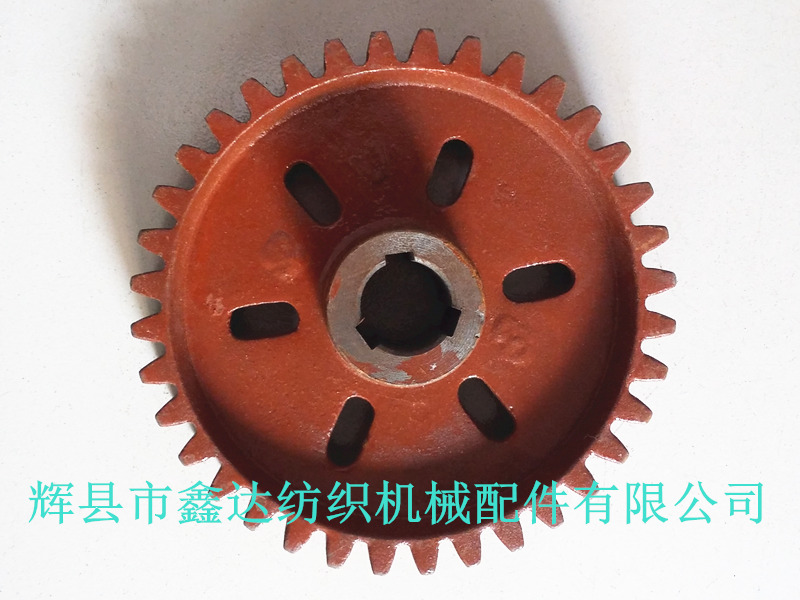

Our company provides 1511 textile machine accessories - weaving machine D7 crank shaft gear accessories, D7 bending shaft gear has 3 keyways (12 points), so that when the teeth of the feeding point are damaged, the installation position of the keyway can be replaced, so that the accessories can be used again. The inner hole of the crank shaft gear accessories D7 of the wide loom (1515, GA615) is 40mm, the height is 66mm, and the weight is about 5.3kg.

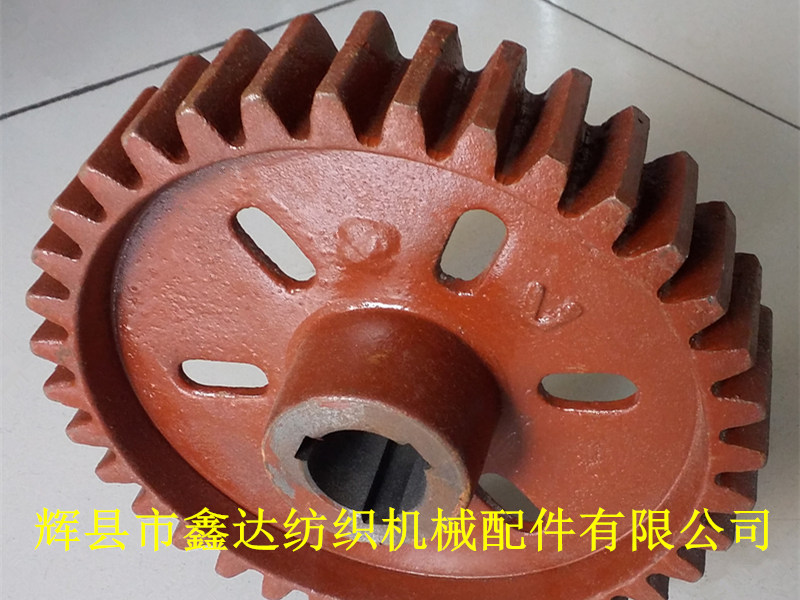

According to different materials, the bending shaft gear D7 of the loom can be divided into pig iron, nodular iron and nylon. Its overall dimensions are the same. According to different processing technologies, it can be divided into casting teeth, milling teeth and injection molding teeth (nylon).

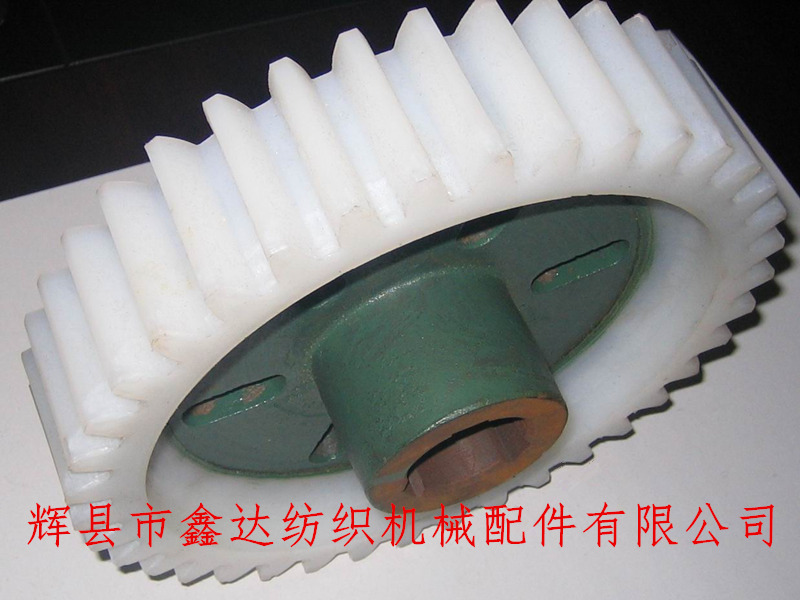

The figure above shows D7 of nylon teeth. The main part is made of gray iron, and the outer ring is made of nylon injection molding. We call it nylon D7. The number of teeth is 36, the modulus is 6.35, the outer diameter (36 + 2) x6.35 = 241.3mm, and the actual shape diameter is 239mm after cooling in cast iron or nylon.
The six holes on the crank shaft gear of loom D7 are used to fix the stable cam D13. Since D13 is divided into left hand and right hand, D13 is fixed with one m12x55 half round head square neck screw.
Professional textile machinery accessories, weaving machine D7, bending gear, weaving machine gear supplier, product support wholesale, starting order 10, default delivery period 7-10 days.
