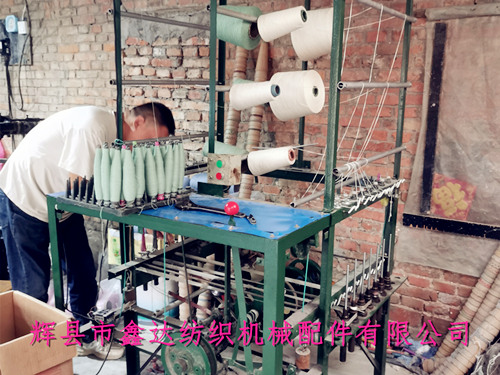

Huixian Xinda Textile Machinery Parts Co., Ltd. provides a short-term supply of a small spindle type weft winding machine with 16 spindles and a 02 type weft dropping machine.Pirn Winder, Small Weft Winder, Ingot Winder, Auxiliary Equipment, This spindle type weft winding machine is a simple model, with the spindle model being 02 type and the length of the smooth spindle rod being 15 centimeters. The head of the weft winding machine adopts a mechanical structure, with 8 spindles on each side of the machine.
The above picture is a side view of the warp winding machine (16 spindles)
The above picture shows the transmission mechanism of the warp winding machine. The forming cam controls the winding shape of the weft yarn tube, and each spindle sends power to four spindles.
The enamel guide screw and tensioner coordinate to control the tension of the weft yarn, and the specific tension can be adjusted by adjusting the spring of the tensioner. This equipment is a second-hand simple warp winding machine (weft dropping machine, weft beating machine), which is used for the pre weaving process in the textile industry.
