Huixian Xinda Textile accessories support stainless wire heald_ Textile steel wire heald_ The processing of nickel plated brown wire on weaving machine is customized. According to the production process, the steel wire harness can generally be divided into injection molding, tin welding, brazing and steel sheet stamping. The stainless steel harness is made by brazing and stamping. The used mold can be adjusted according to the length of the stainless steel harness. The surface treatment of the product is nickel plating. The application scenario is mainly in the weaving of special fabrics (cord fabric, screen, carbon fiber, etc.).

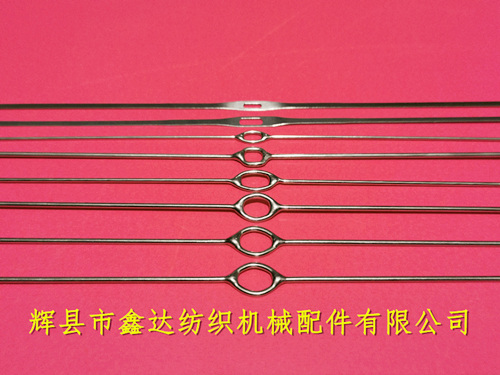

The brown eye specifications of the steel sheet heald in the above figure are from top to bottom: inner length 6.5mm, inner width 1.8mm, thickness 0.2mm; The inner length is 8mm, the inner width is 2.5mm, and the thickness is 0.4mm; They are made of stainless steel and stainless iron. In addition, there are 5.5 * 1.2 specifications.
The stainless steel heald wire of the lower square round steel wire is subject to surface nickel plating treatment. Their diameters are generally 1.2mm (the thinner in the figure), 1.4mm, 1.6mm, 1.8mm and 2.0mm. The length of common nickel plated brown wire is 305mm, 331mm, 380mm, 455mm, etc. they need a mold in the process of processing, and the brazing surface needs to be smooth and clean, and the thickness of the surface nickel plating layer has strict requirements. This product has the characteristics of high strength and accurate arrangement.
In the process of carbon fiber weaving, because the material itself is mainly flat wire, the stainless steel brown eye (heald eye) used is occasionally designed with square holes, which are usually rectangular and square. The length is generally less than 1.25 meters. When used, multi heald frames are used for staggered hanging.
The package of such stainless steel nickel plated heald, textile machine heald, steel wire heald, brown wire, stainless steel heald, and woven brown wire is generally 200 pieces / bundle, and the package of steel sheet heald is 500 pieces per string and 10000 pieces per box. All textile enterprises and technology companies need to purchase stainless steel healds_ Textile steel wire heald_ Please contact Mr. Yang of our company for consultation or cooperation.
