Textile leather 1515-277 textile leather ring and loom buffer ring are made of rubber. The inner length of the leather ring is 277mm, which is suitable for export 1515 loom equipment. Each machine uses 2 pieces. The leather pillow R54 fixed at both ends is processed by adding elastic rubber, and is fixed by a card slot to prevent left and right swing, which can ensure the accuracy of each hitting point of the shuttle board. Leather kernel for textile machine; leather ring; all kinds of Dingqing buffer parts; Dingqing parts.
The brand of 277 buffer ring for textile export: ZDP, made in Shanghai, is suitable for 56 inch, 75 inch and 63 inch 1515 looms. Some 75 inch looms of some manufacturers use 285 leather rings, which is equivalent to an increase of 1cm in the inner length of the leather rings. In this case, the textile leather rings do not have the effect of buffer in the sliding box. Although the damage rate of the leather rings is reduced to some extent, the damage rate of the leather knots, shuttle boards and The loss of the shuttle box will increase.

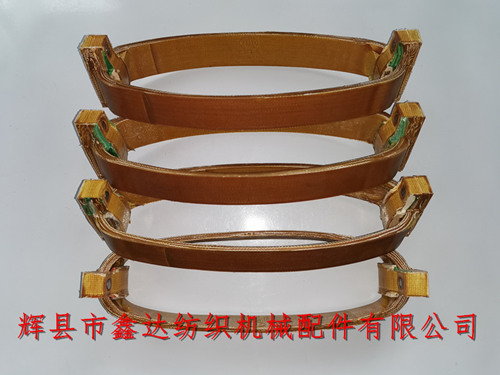

The R2 leather pillow of leather ring is shown in the figure above, which is fixed at both ends of the buffer ring of the loom with rivets, so as to facilitate the shuttle plate to throw and stop the shuttle. The elastic material is used with good effect to prevent the rebound of the rod and reduce the loss of the parts。
The white and green materials at the position of the leather pillow in the above figure are used to increase the elasticity, and the back is fixed by the groove of the leather ring body, which will not move left or right.
The Dingqing leather ring of the textile machine is packed in woven bags or cartons, 50 pieces / bundle (boxes) and 100 pieces / bag. This product belongs to the vulnerable equipment of the woven fabric machine. The width of the leather ring is 38mm. The textile leather includes Dingqing pieces and cowhide pieces. According to the current market situation, the cowhide products are generally replaced by pigskin, with equivalent elastic efficiency.
1515 type 277 textile leather ring loom buffer ring - produced by Huixian Xinda Textile Machinery Accessories Co., Ltd. is a professional textile equipment, which has the processing and wholesale of shuttle leather ring and buffer ring equipment. Our company is currently in accordance with the order plan.
