Xinda Textile Machinery Accessories Co., Ltd. provides 3913X3914 Set Of Temples For 1515 Looms,Textile Machine Part side support box 3913, switch side extension box 3914 side support seat, 3913 is the extension seat on the switch side and 3914 is the extension cover on the switch side. The two are combined with M10 hexagon screws to form the side support box (seat, 3913X3914). During installation, pay attention to the difference between the Left hand machine and the right hand machine.

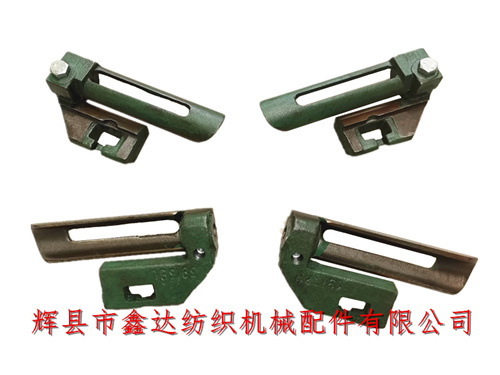

In the above figure, the two on the left are used by left mobile phones and the two on the right are used by right mobile phones. Each loom uses one set. The side support and extension sub seat and extension sub cover are divided into left and right hands equally. The aperture of the side fixed copper thorn shaft is 10mm.
The side support box is generally used for 1515 loom, which uses 14 ring copper thorn shaft. It can be used together with 10 ring copper thorn shaft in narrow 1515 refitting machine (such as 28 inch, 32 inch, 36 inch, etc.).
1515 textile accessories - 3913X3914 shuttle loom side support device accessories are made of gray iron ht15-32, fixed on the 3906 side support rod by T-shaped screws and l69 (side support box climbing), and the abrasion depth of the groove shall not exceed 0.8mm. When the crankshaft is at the front dead center, the clearance between the side support and the reed is 1.6mm, so the reed cannot be touched.
1515 textile machine accessories - 3913X3914 side support boxes, 10 pieces per string, 50 pieces per bag, with a minimum order of 10 pieces. The weight of a single side support seat is about 0.55kg. The upper cover is 3914 and the lower base is 3913. If you need to purchase separately, please provide the accurate part number.
